General Information: Specification

■ Output voltage of power seat recline sensor.

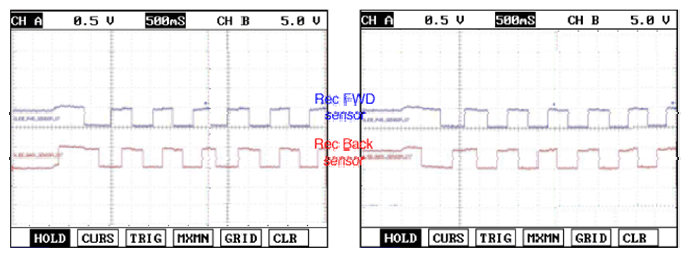

Fig 1: Signal Waveform - power seat Recline Sensor (FWD And BACK)

G06805682

Courtesy of HYUNDAI MOTOR CO.
