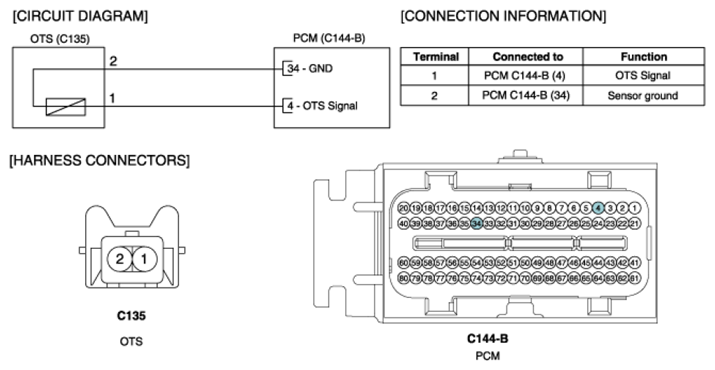

Home >> Hyundai >> 2010 >> Azera GLS >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> CVVT Oil Temperature Sensor (OTS) >> Schematic Diagrams >> Circuit Diagram
