Azera GLS
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Auxiliary Emission Control Systems
>>
Evaporative Emission Control System
>>
Flow Diagram
>>
Schematic Diagram
Schematic Diagram

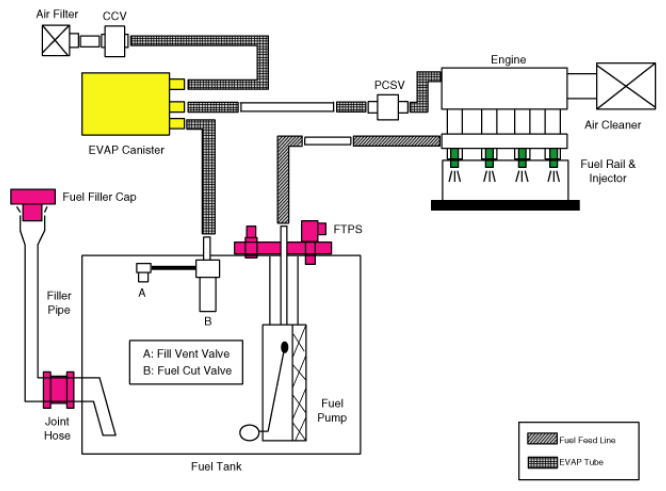

Fig 1: Evaporative Emission Control System Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
