Components and Components Location: Components

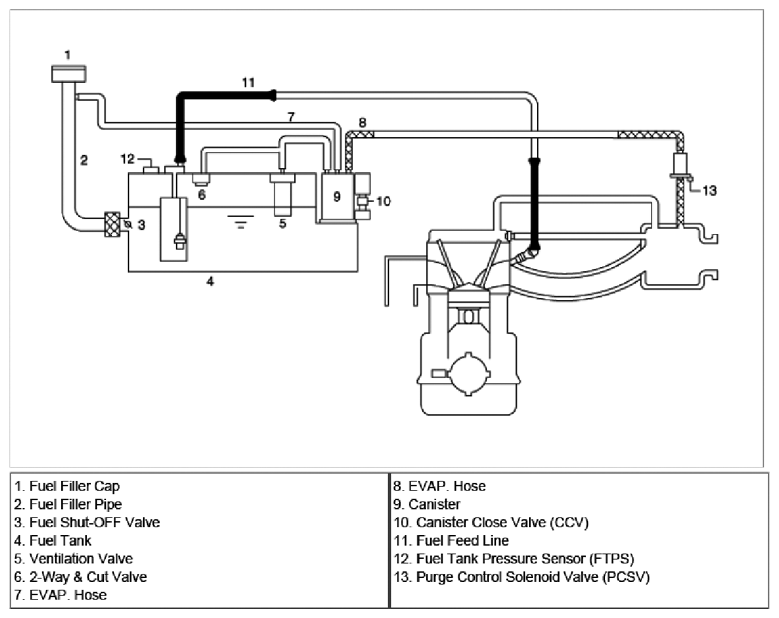

Fig 1: Evaporative Emission Control System Diagram

G06804998

Courtesy of HYUNDAI MOTOR CO.
