Signal Waveform

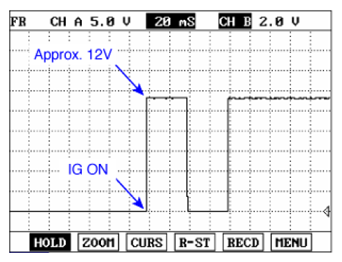

Fig 1: Normal Waveform Of Front Wheel Speed Sensor After Ignition ON
G06805802Courtesy of HYUNDAI MOTOR CO.

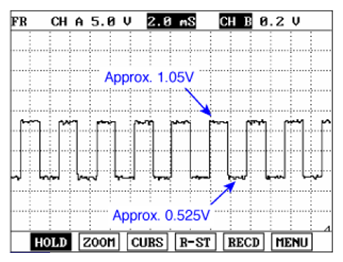

Fig 2: Normal Waveform Of Front Wheel Speed Sensor With Low Speed Condition
G06805803Courtesy of HYUNDAI MOTOR CO.

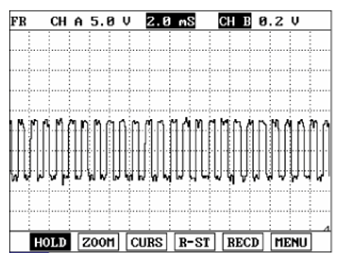

Fig 3: Normal Waveform Of Front Wheel Speed Sensor With High Speed Condition
G06805804Courtesy of HYUNDAI MOTOR CO.
