Signal Waveform

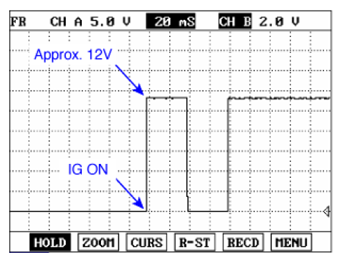

Fig 1: Normal Waveform Of Front Wheel Speed Sensor After Ignition ON
G06805779Courtesy of HYUNDAI MOTOR CO.

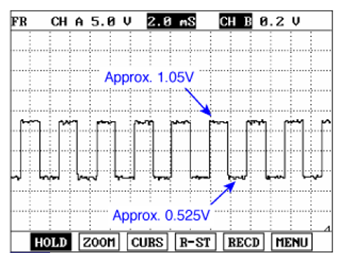

Fig 2: Normal Waveform Of Front Wheel Speed With Low Speed Condition
G06805780Courtesy of HYUNDAI MOTOR CO.

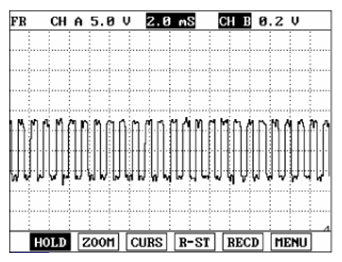

Fig 3: Normal Waveform Of Front Wheel Speed Sensor With High Speed Condition
G06805781Courtesy of HYUNDAI MOTOR CO.
