Repair procedures: Inspection

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

Fig 1: Identifying Power Seat Control Switch Connectors

Courtesy of HYUNDAI MOTOR CO.

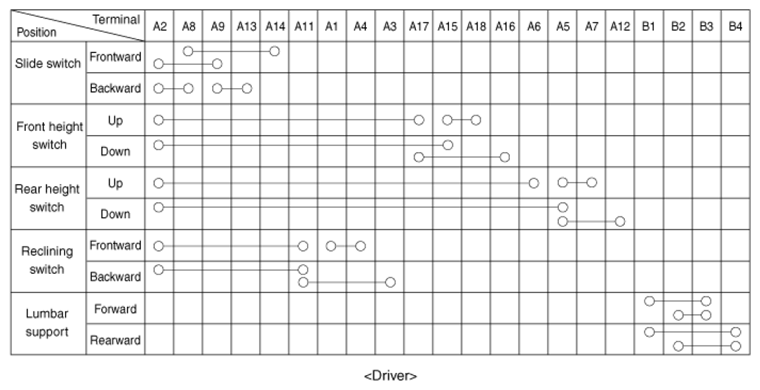

Fig 2: Power Seat Control Switch Continuity Chart - Driver

Courtesy of HYUNDAI MOTOR CO.

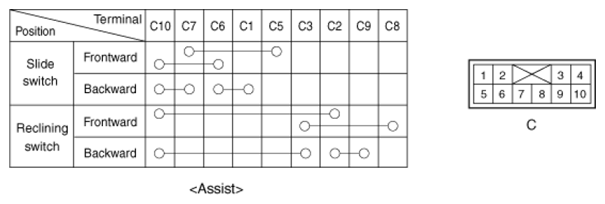

Fig 3: Power Seat Control Switch Continuity Chart - Assist

Courtesy of HYUNDAI MOTOR CO.
