Schematic Diagram

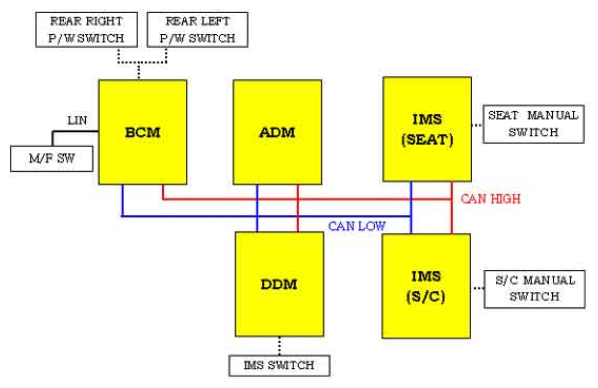

Fig 1: CAN Communication Diagram

G06803454

Courtesy of HYUNDAI MOTOR CO.

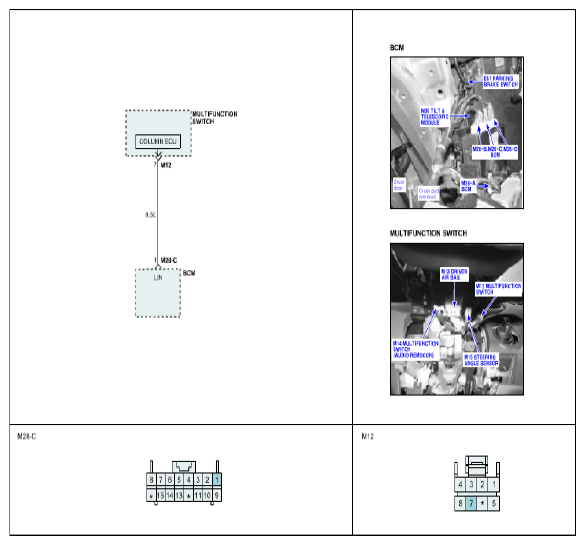

Fig 2: CAN Communication - Schematic Diagram

G06803455

Courtesy of HYUNDAI MOTOR CO.
