Schematic Diagram

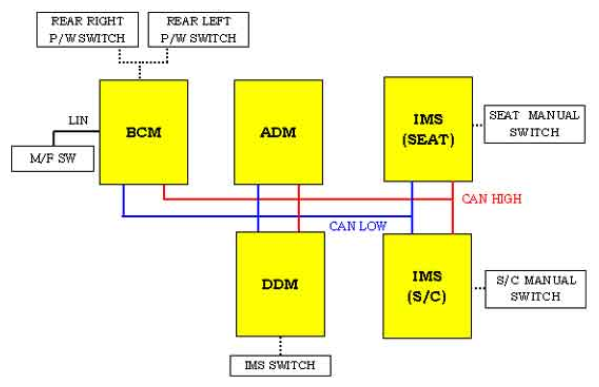

Fig 1: Driver Door Module Communication Diagram
G06803372Courtesy of HYUNDAI MOTOR CO.

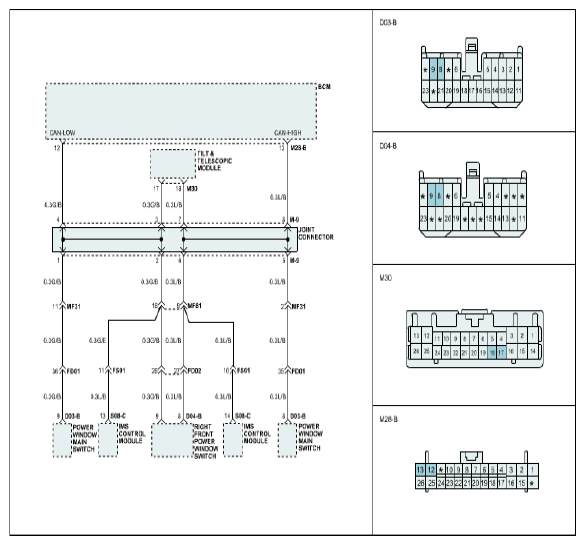

Fig 2: Driver Door Module Schematic
G06803373Courtesy of HYUNDAI MOTOR CO.

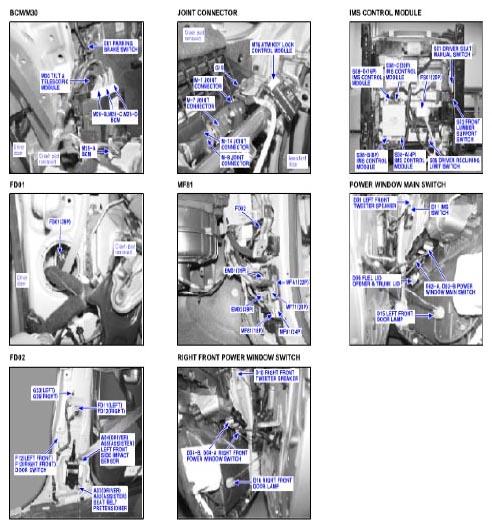

Fig 3: Identifying Power Window Main Switch Connectors
G06803374Courtesy of HYUNDAI MOTOR CO.
