A/C Pressure Sensor Connector End View

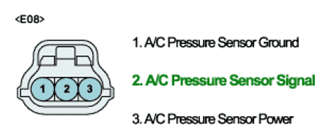

Fig 1: A/C Pressure Sensor Connector End View

G06881876

Courtesy of HYUNDAI MOTOR AMERICA
