Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Left Front Of Engine Compartment

G00459091

Courtesy of HYUNDAI MOTOR CO.

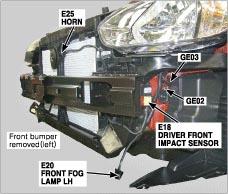

Fig 2: Left Front Of Engine Compartment

G00479640

Courtesy of HYUNDAI MOTOR CO.

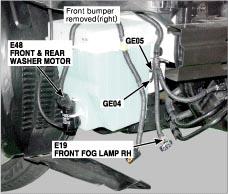

Fig 3: Right Front Of Engine Compartment

G00477647

Courtesy of HYUNDAI MOTOR CO.

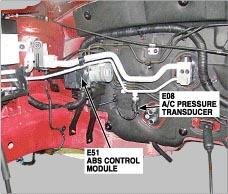

Fig 4: Right Front Of Engine Compartment

G00477640

Courtesy of HYUNDAI MOTOR CO.

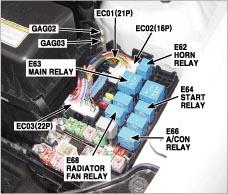

Fig 5: Left Side Of Engine Compartment

G00477318

Courtesy of HYUNDAI MOTOR CO.

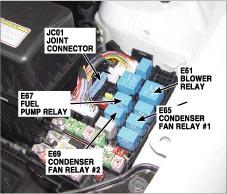

Fig 6: Left Side Of Engine Compartment

G00477319

Courtesy of HYUNDAI MOTOR CO.

Fig 7: Left Rear Of Engine

G00477320

Courtesy of HYUNDAI MOTOR CO.

Fig 8: Front Of Engine Compartment

G00477321

Courtesy of HYUNDAI MOTOR CO.

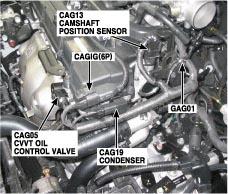

Fig 9: Rear Of Engine

G00477649

Courtesy of HYUNDAI MOTOR CO.

Fig 10: Rear Of Engine

G00431045

Courtesy of HYUNDAI MOTOR CO.

Fig 11: Top Of Engine

G00431046

Courtesy of HYUNDAI MOTOR CO.

Fig 12: Top Of Engine

G00477643

Courtesy of HYUNDAI MOTOR CO.

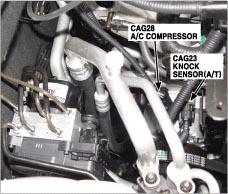

Fig 13: Right Rear Of Engine Compartment

G00477322

Courtesy of HYUNDAI MOTOR CO.

Fig 14: Top Of Transaxle (A/T)

G00477323

Courtesy of HYUNDAI MOTOR CO.

Fig 15: Top Of Transaxle (A/T)

G00441800

Courtesy of HYUNDAI MOTOR CO.

Fig 16: Top Of Transaxle (M/T)

G00477324

Courtesy of HYUNDAI MOTOR CO.

Fig 17: Lower Left Rear Of Engine

G00477325

Courtesy of HYUNDAI MOTOR CO.

Fig 18: Right Rear Of Engine

G00477326

Courtesy of HYUNDAI MOTOR CO.

Fig 19: Left Rear Of Engine Compartment

G00431055

Courtesy of HYUNDAI MOTOR CO.

Fig 20: Left Front Wheelwell (Right Similar)

G00431056

Courtesy of HYUNDAI MOTOR CO.

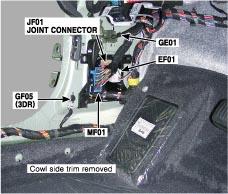

Fig 21: Left Kick Panel

G00477650

Courtesy of HYUNDAI MOTOR CO.

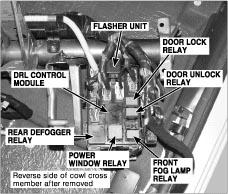

Fig 22: Under Left Side Of Dash

G00477652

Courtesy of HYUNDAI MOTOR CO.

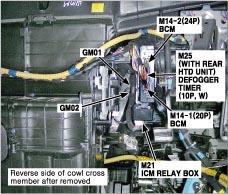

Fig 23: Behind Left Center Of Dash

G00477636

Courtesy of HYUNDAI MOTOR CO.

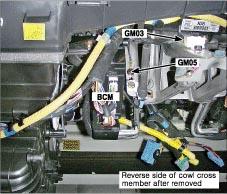

Fig 24: Under Center Of Dash

G00477637

Courtesy of HYUNDAI MOTOR CO.

Fig 25: Under Left Side Of Dash

G00431063

Courtesy of HYUNDAI MOTOR CO.

Fig 26: Behind Right Side Of Dash

G00477327

Courtesy of HYUNDAI MOTOR CO.

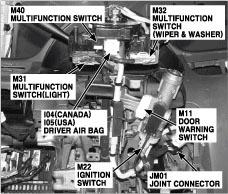

Fig 27: Steering Column

G00477328

Courtesy of HYUNDAI MOTOR CO.

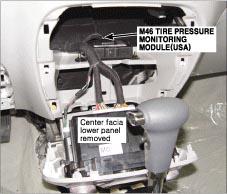

Fig 28: Behind Center Of Dash

G00477329

Courtesy of HYUNDAI MOTOR CO.

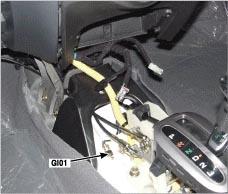

Fig 29: Under Front Of Center Console

G00477331

Courtesy of HYUNDAI MOTOR CO.

Fig 30: Under Center Console

G00459102

Courtesy of HYUNDAI MOTOR CO.

Fig 31: Right End Of Dash

G00477332

Courtesy of HYUNDAI MOTOR CO.

Fig 32: Under Right Side Of Dash

G00431075

Courtesy of HYUNDAI MOTOR CO.

Fig 33: Center Front Of Roof

G00431077

Courtesy of HYUNDAI MOTOR CO.

Fig 34: Left Front Door

G00441792

Courtesy of HYUNDAI MOTOR CO.

Fig 35: Left Front Door

G00441788

Courtesy of HYUNDAI MOTOR CO.

Fig 36: Right Front Door

G00477638

Courtesy of HYUNDAI MOTOR CO.

Fig 37: Under Driver's Seat

G00441787

Courtesy of HYUNDAI MOTOR CO.

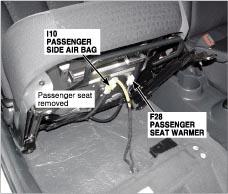

Fig 38: Under Front Passenger Seat

G00477334

Courtesy of HYUNDAI MOTOR CO.

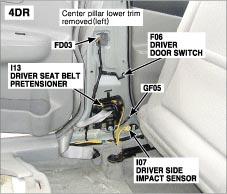

Fig 39: Left "B" Pillar (4-Door)

G00477642

Courtesy of HYUNDAI MOTOR CO.

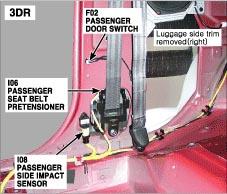

Fig 40: Right "B" Pillar (3-Door)

G00477337

Courtesy of HYUNDAI MOTOR CO.

Fig 41: Under Rear Seats

G00431086

Courtesy of HYUNDAI MOTOR CO.

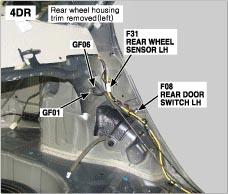

Fig 42: Lower Left "C" Pillar (4-Door)

G00477644

Courtesy of HYUNDAI MOTOR CO.

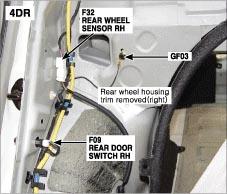

Fig 43: Lower Right "C" Pillar (4-Door)

G00477335

Courtesy of HYUNDAI MOTOR CO.

Fig 44: Left "C" Pillar (4-Door)

G00431089

Courtesy of HYUNDAI MOTOR CO.

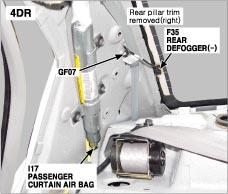

Fig 45: Right "C" Pillar (4-Door)

G00477336

Courtesy of HYUNDAI MOTOR CO.

Fig 46: Right Rear Door (Left Similar)

G00431091

Courtesy of HYUNDAI MOTOR CO.

Fig 47: Center Rear Of Trunk

G00441799

Courtesy of HYUNDAI MOTOR CO.

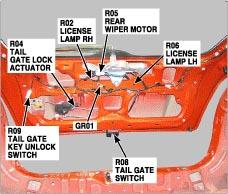

Fig 48: Tailgate

G00477646

Courtesy of HYUNDAI MOTOR CO.

Fig 49: Rear Underside Of Vehicle

G00431097

Courtesy of HYUNDAI MOTOR CO.

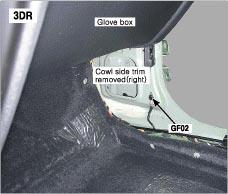

Fig 50: Right Kick Panel (3-Door)

G00477338

Courtesy of HYUNDAI MOTOR CO.

Fig 51: Under Seat

G00477639

Courtesy of HYUNDAI MOTOR CO.

Fig 52: Right Front Door

G00477641

Courtesy of HYUNDAI MOTOR CO.

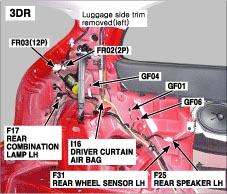

Fig 53: Left "C" Pillar (3-Door)

G00477645

Courtesy of HYUNDAI MOTOR CO.

Fig 54: Right Front Of Engine Compartment

G00477648

Courtesy of HYUNDAI MOTOR CO.

Fig 55: Front Of Engine Compartment

G00459096

Courtesy of HYUNDAI MOTOR CO.

Fig 56: Left Side Of Engine Compartment

G00459098

Courtesy of HYUNDAI MOTOR CO.

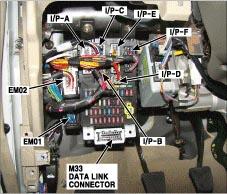

Fig 57: Under Left End Of Dash

G00477651

Courtesy of HYUNDAI MOTOR CO.

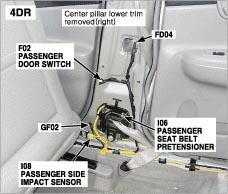

Fig 58: Right "B" Pillar (4-Door)

G00477654

Courtesy of HYUNDAI MOTOR CO.

Fig 59: Left "B" Pillar (3-Door)

G00459105

Courtesy of HYUNDAI MOTOR CO.

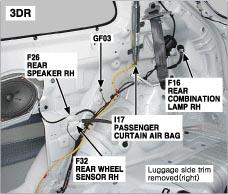

Fig 60: Right "C" Pillar (3-Door)

G00477655

Courtesy of HYUNDAI MOTOR CO.

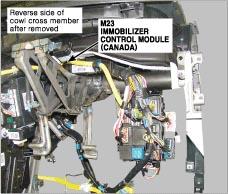

Fig 61: Under Right Side Of Dash

G00477656

Courtesy of HYUNDAI MOTOR CO.

Fig 62: HVAC Housing, Near Blower Motor

G00469703

Courtesy of HYUNDAI MOTOR CO.

Fig 63: Right Front Of Engine Compartment

G00477330

Courtesy of HYUNDAI MOTOR CO.

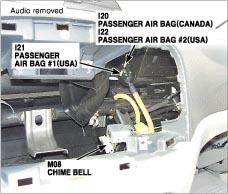

Fig 64: Right Side Of Dash

G00477653

Courtesy of HYUNDAI MOTOR CO.

Fig 65: Left Side Of Dash

G00477657

Courtesy of HYUNDAI MOTOR CO.

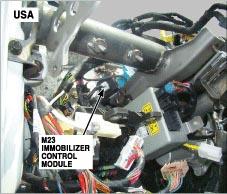

Fig 66: Right Side Of Dash

G00477658

Courtesy of HYUNDAI MOTOR CO.
