Monitor Scan Tool Data

  1. Connect scan tool to data link connector (DLC).
  2. Ignition "ON" & Engine "OFF".
  3. Monitor the "SELECT LEVER SWITCH and SHIFT GEAR POSITION" parameter on the scan tool.
  4. Shift selector lever from "P" range to "D" range.

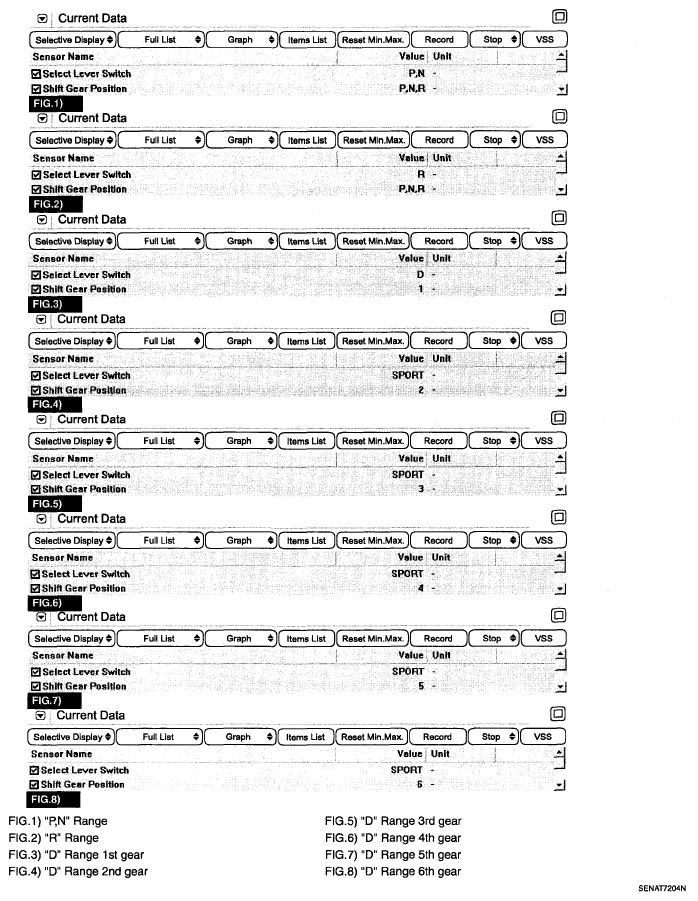

    Fig 1: Scan Tool Display - "SELECT LEVER SWITCH And SHIFT GEAR POSITION"
    G05330203Courtesy of HYUNDAI MOTOR CO.
  5. Does "TRANSAXLE RANGE SWITCH" follow the reference data?

    YES:

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO:
