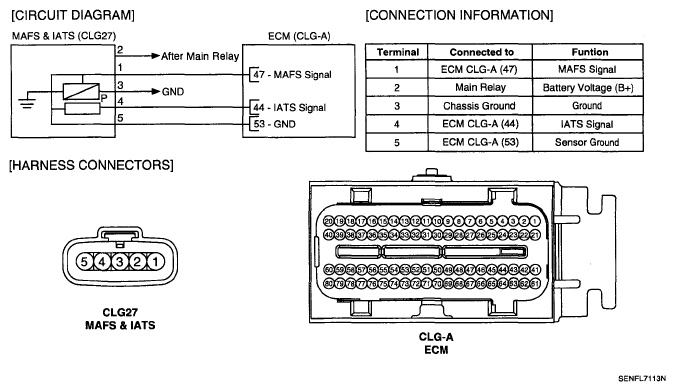

Home >> Hyundai >> 2009 >> Veracruz GLS, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Fuel System) (G6DA - GSL 3.8) >> Gasoline Engine Control System >> Mass Air Flow Sensor (MAFS) >> Schematic Diagram
