Fuel Tank: Removal

  1. Preparation
    1. Remove the 2nd seat (Refer to SEAT ).
    2. Open the carpet for fuel pump (A).
      Fig 1: Identifying Fuel Pump Carpet
      G05330145Courtesy of HYUNDAI MOTOR CO.
    3. Remove the service cover of the fuel pump (A).
      Fig 2: Identifying Fuel Pump Service Cover
      G05330146Courtesy of HYUNDAI MOTOR CO.
    4. Disconnect the fuel pump connector (A).
      Fig 3: Identifying Fuel Pump Connector
      G05330147Courtesy of HYUNDAI MOTOR CO.
    5. Start the engine and wait until fuel in fuel line is exhausted.
    6. After engine stops, turn the ignition switch off.

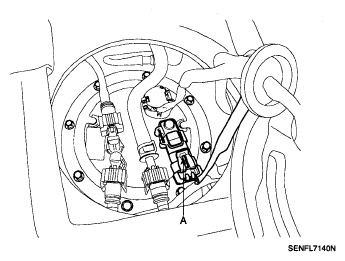

  2. Disconnect the fuel tank pressure sensor connector (A).
    Fig 4: Identifying Fuel Tank Pressure Sensor Connector
    G05330159Courtesy of HYUNDAI MOTOR CO.
  3. Open the service cover of the sub fuel sender (A).
    Fig 5: Identifying Sub Fuel Sender Service Cover
    G05330160Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the sub fuel sender connector (A) and the canister close valve connector (B).
    Fig 6: Identifying Fuel Sender Connector And Canister Close Valve Connector
    G05330161Courtesy of HYUNDAI MOTOR CO.
  5. Lift the vehicle and remove the muffler assembly and the propeller shaft (4WD) (Refer to "ENGINE (G6DA - GSL 3.8) " and "PROPELLER SHAFT ASSEMBLY ").
  6. Support the fuel tank with a jack.
  7. Disconnect the fuel feed tube quick-connector (A) and the vacuum tube quick-connector (B).
    Fig 7: Identifying Fuel Feed Tube Quick-Connector And Vacuum Tube Quick-Connector
    G05330162Courtesy of HYUNDAI MOTOR CO.

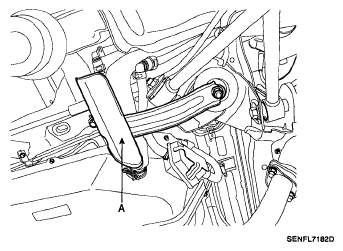

  8. Remove the bracket (A) near the fuel tank air filter.
    Fig 8: Identifying Fuel Tank Air Filter Bracket
    G05330163Courtesy of HYUNDAI MOTOR CO.
  9. Disconnect the fuel filler hose (A) and the ventilation hose quick-connector (B).
    Fig 9: Identifying Fuel Filler Hose And Ventilation Hose Quick-Connector
    G05330164Courtesy of HYUNDAI MOTOR CO.
  10. Disconnect the leveling tube quick-connector (A).
    Fig 10: Identifying Leveling Tube Quick-Connector
    G05330165Courtesy of HYUNDAI MOTOR CO.

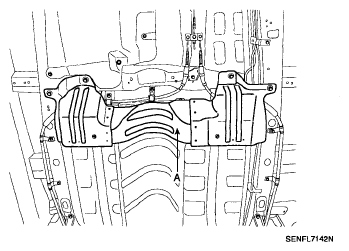

  11. Remove the fuel tank cover (A).
    Fig 11: Identifying Fuel Tank Cover
    G05330166Courtesy of HYUNDAI MOTOR CO.

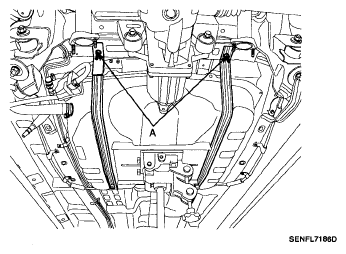

  12. Unscrew the fuel tank bank mounting nuts (A) and remove the fuel tank from the vehicle.
    Fig 12: Identifying Fuel Tank Bank Mounting Nuts
    G05330167Courtesy of HYUNDAI MOTOR CO.
