Tailgate Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate trim. (Refer to TAILGATE TRIM REPLACEMENT )

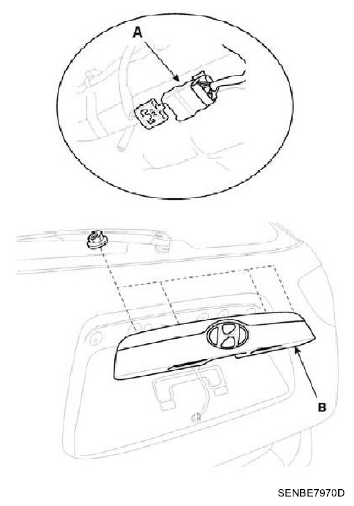

  3. Disconnect the connector (A). After loosening the remove tailgate garnish mounting nuts, then tailgate garnish (B).
    Fig 1: Identifying Connector And Tailgate Garnish
    G06207895Courtesy of HYUNDAI MOTOR CO.
  4. Remove the outside handle (A) after loosening the outside handle mounting screws.
Fig 2: Identifying Outside Handle
G06207896Courtesy of HYUNDAI MOTOR CO.
