Smart Key Unit

Disconnect the negative (-) battery terminal.
Remove the console under cover (A) and connectors (B). (Refer to the CONSOLE )

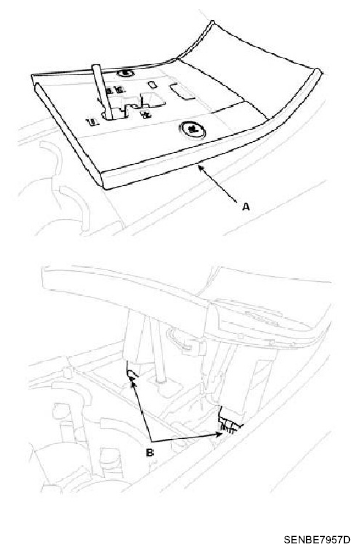

Fig 1: Identifying Console Under Cover And Connectors
Courtesy of HYUNDAI MOTOR CO.
After loosening the console mounting screws, remove the floor console assembly (A). (Refer to CONSOLE )

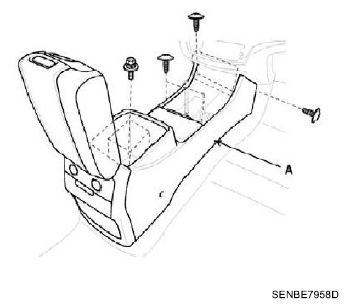

Fig 2: Identifying Floor Console Assembly
Courtesy of HYUNDAI MOTOR CO.
After loosening the smart key unit mounting bolts (B) and connector, remove the smart key unit (A).
