RF Receiver: Notes

1. Disconnect the negative (-) battery terminal.
2. Remove the glove box. (Refer to CRASH PAD )
3. After loosening the mounting screws and bolts, then remove the glove box housing (A).

   Disconnect the connector (B). (Refer to CRASH PAD )

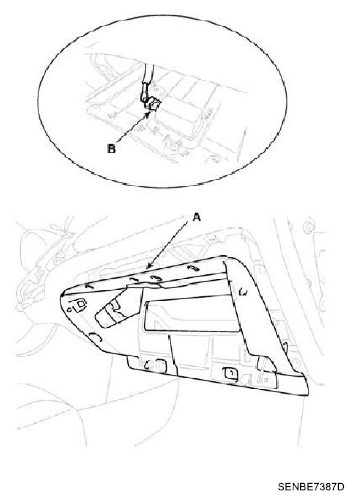

   Fig 1: Identifying Glove Box Housing And Connector

   Courtesy of HYUNDAI MOTOR CO.

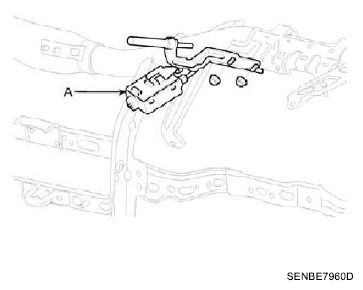

4. After loosening the mounting nuts (2EA), then remove the connector.
