DTC P1675 Transponder Programming Error
>>
Schematic Diagram
Schematic Diagram

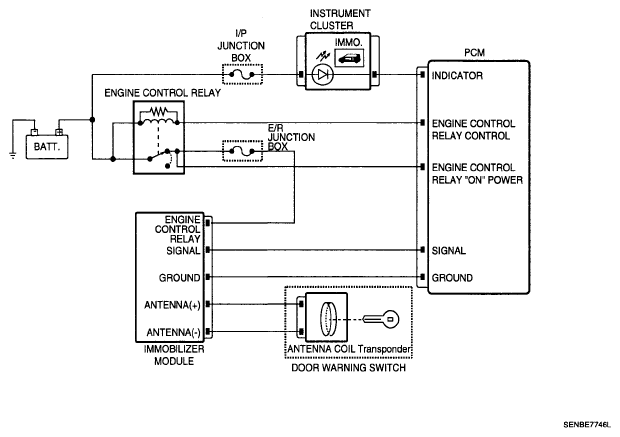

Fig 1: Engine Control Relay - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
