Monitor Scan Tool Data

Ignition "OFF", connect scan tool.
Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
Monitor diagnostic trouble code and present of trouble code.
Using a scan tool, clear the DTC.

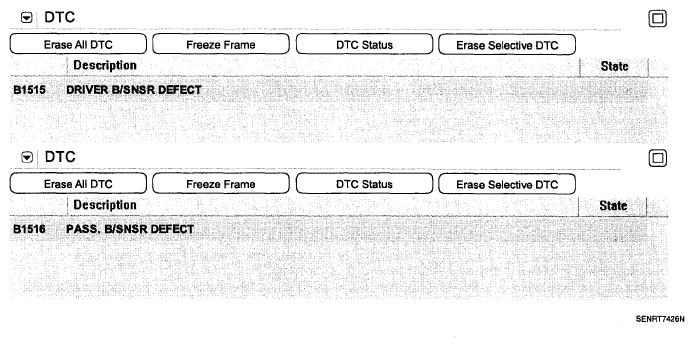

Fig 1: Scan Tool Display - Driver/Passenger B/SNSR Defect
Courtesy of HYUNDAI MOTOR CO.
Is DTC present problem ?
YES:
- Go to W/Harness Inspection procedure.
NO:
- Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared.
  Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
