WCS Reset

Ignition "OFF", connect scan tool.
Ignition "ON" & Engine "OFF", select Weight Classification System and select "WCS Reset" mode.
You will see comments and current weight measured.
Make sure the measure weight is caused by occupant or tools or interference.
And then press "ENTER"

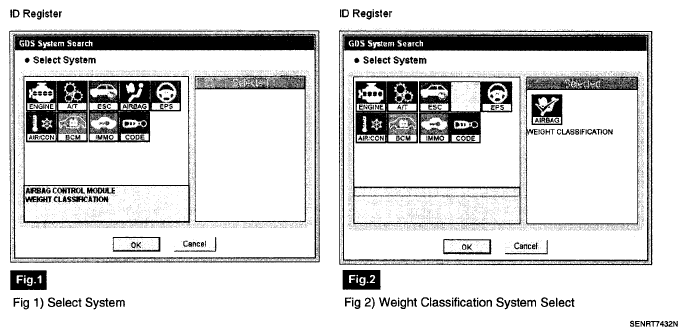

Fig 1: Scan Tool Display - Weight Classification System
Courtesy of HYUNDAI MOTOR CO.

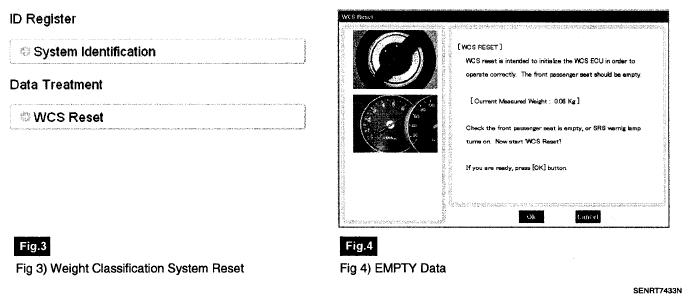

Fig 2: Scan Tool Display - Weight Classification System Reset
Courtesy of HYUNDAI MOTOR CO.

■ Specification : Approx. -4.0 kg ~ +4.0kg
The 'WCS Reset' operation will take 3~10 second.
Make sure that there should not be vibration or weight adding to the passenger front seat.

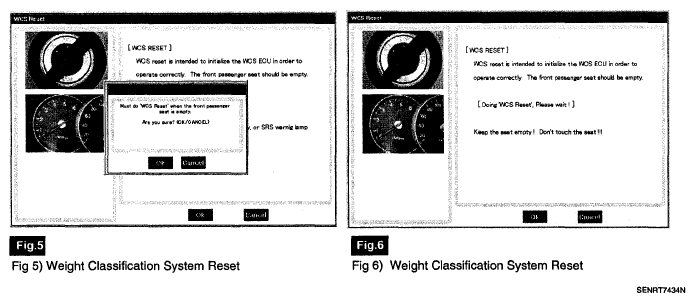

Fig 3: Scan Tool Display - Weight Classification System Reset
Courtesy of HYUNDAI MOTOR CO.
If the 'WCS Reset' operation is finished successfully, you will see the following screen.

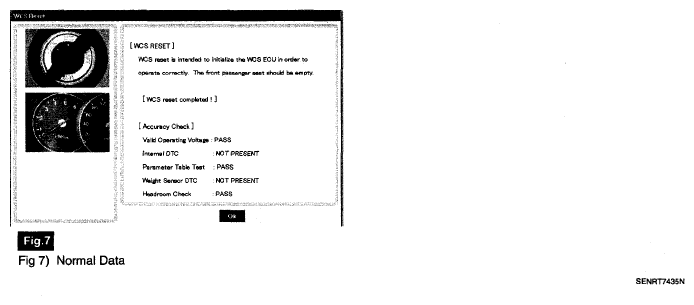

Fig 4: Scan Tool Display - WCS Reset Operation
Courtesy of HYUNDAI MOTOR CO.

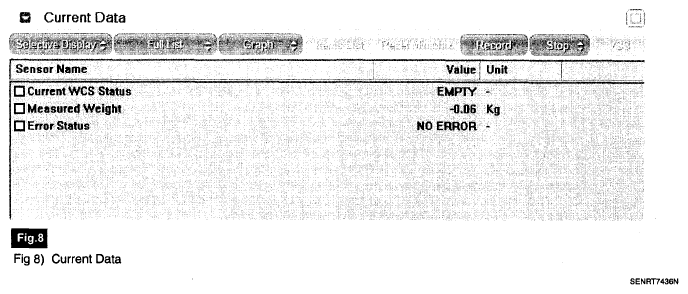

Fig 5: Scan Tool Display - Current Data
Courtesy of HYUNDAI MOTOR CO.

■ Specification : Approx. -4.0 kg ~ +4.0kg
Is the displayed parameter the same as the above 7 figure?
YES:
- WCS reset is performed correctly.
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO:
- WCS reset isn't performed correctly.
- Go to the applicable troubleshooting procedure.
