SRS Control Module: Removal

  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Disconnect the DAB, PAB, SAB, CAB and BPT connectors.
  4. Remove the floor console and heater ducts. (Refer to INTERIOR )
  5. Disconnect the SRSCM harness connector from the SRSCM.

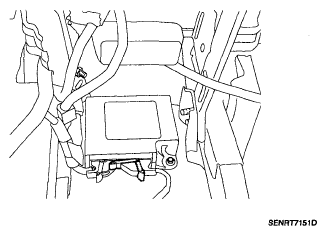

    Fig 1: Identifying SRSCM Harness Connector
    G05330860Courtesy of HYUNDAI MOTOR CO.
  6. Remove the SRSCM mounting nuts (3EA) from the SRSCM, then remove the SRSCM.

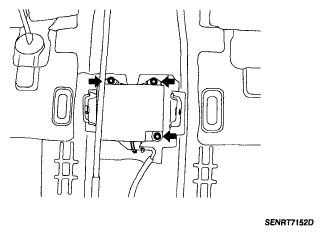

    Fig 2: Locating SRSCM Mounting Nuts
    G05330861Courtesy of HYUNDAI MOTOR CO.
