Front Side Impact Sensor
CAUTION:
- Removal of the airbag must be performed according to the precautions/procedures described previously.
- Before disconnecting the side impact sensor connector (s), disconnect the side airbag connectors).
- Do not turn the ignition switch ON and do not connect the battery cable while replacing the side impact sensor.
- Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
- Remove the lower anchor bolt.
- Remove the door scuff trim. (Refer to DOOR SCUFF TRIM REPLACEMENT )
- Remove the center pillar trim. (Refer to CENTER PILLAR TRIM REPLACEMENT )

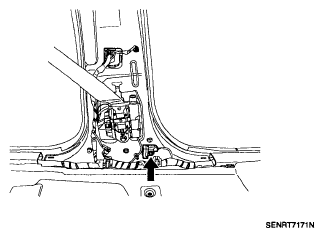

- Disconnect the Side Impact Sensor connector and remove the Side Impact Sensor mounting bolt.
