Seat Track Position Sensor (Advanced Only): Removal

  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the front seat assembly. (Refer to FRONT SEAT )
  3. Loosen the two STPS screws, then remove the STPS after disconnecting the STPS connector.

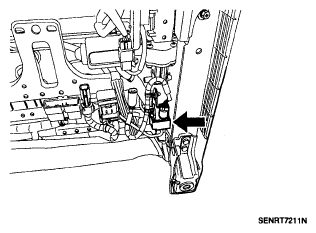

    Fig 1: Locating STPS Connector
    G05330890Courtesy of HYUNDAI MOTOR CO.
