Air Bag Restraint System: General: Components: Notes

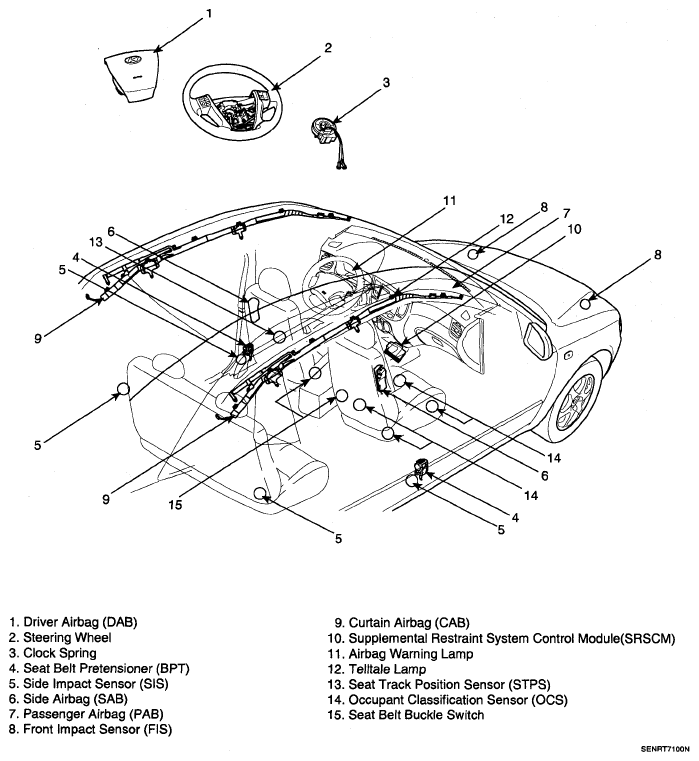

Fig 1: Identifying Restraints System Components

G05330851

Courtesy of HYUNDAI MOTOR CO.
