Air Bag Module: Installation
- Remove the ignition key from the vehicle.
- Disconnect the battery negative cable from battery and wait for at least three minutes before beginning work.

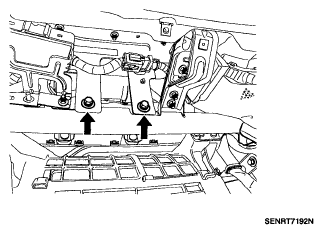

- Place a Passenger Airbag (PAB) on the crash pad and tighten the Passenger Airbag (PAB) mounting nuts.
Tightening torque : 0.9 ~ 1.0 kgf.m (8.8 ~ 9.8 N.m, 6.5 ~ 7.2 lb.ft)
- Install the heater duct to the crash pad.
- Install the crash pad. (Refer to CRASH PAD )
- Tighten the PAB mounting bolt.
Tightening torque : 1.2 ~ 1.3 kgf.m (11.8 ~ 12.7 N.m, 8.7 ~ 9.4 lb.ft)
- Connect the Passenger Airbag (PAB) harness connector to the SRS main harness connector.
- Reinstall the glove box. (Refer to GLOVE BOX REPLACEMENT )
- Reconnect the battery negative cable.
- After installing the Passenger Airbag (PAB), confirm proper system operation:
- Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
