Air Bag Module And Clock Spring: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the airbag module mounting bolts (2EA).
    Fig 1: Identifying Driver Airbag Module Mounting Bolts
    G05330863Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the horn connector (A).

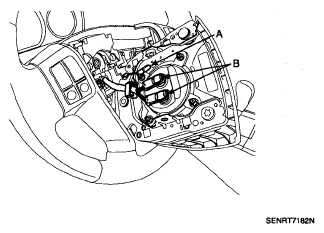

    Fig 2: Identifying Horn Connector And Driver Airbag Module Connector
    G05330864Courtesy of HYUNDAI MOTOR CO.
  4. Release the connector locking pin, then disconnect the driver airbag module connector (B).
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover face up.
  5. Remove the steering wheel and steering wheel column cover.
  6. Disconnect the clock spring and horn connector, then remove the clock spring.

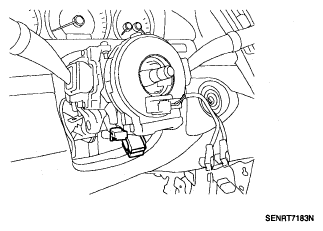

    Fig 3: Identifying Horn Connector
    G05330865Courtesy of HYUNDAI MOTOR CO.
