Air Bag Module And Clock Spring: Components

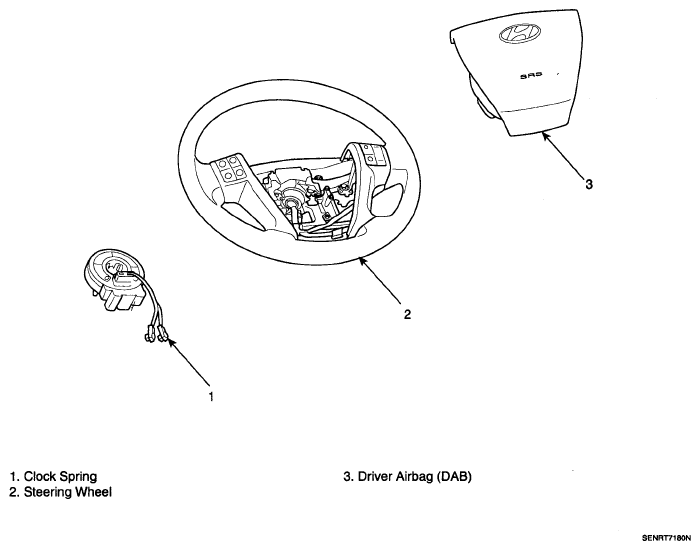

Fig 1: Identifying Air Bag Module Components (Driver Side)

G05330862

Courtesy of HYUNDAI MOTOR CO.
