Fuel Pump: Removal

Preparation
1. Remove the 2nd seat (Refer to SEAT ).
2. Open the carpet for fuel pump (A).

  Fig 1: Identifying Fuel Pump Carpet
  Courtesy of HYUNDAI MOTOR CO.
3. Remove the service cover of the fuel pump (A).

  Fig 2: Identifying Fuel Pump Service Cover
  Courtesy of HYUNDAI MOTOR CO.
4. Disconnect the fuel pump connector (A).

  Fig 3: Identifying Fuel Pump Connector
  Courtesy of HYUNDAI MOTOR CO.
5. Start the engine and wait until fuel in fuel line is exhausted.
6. After engine stops, turn the ignition switch off.
Disconnect the fuel tank pressure sensor connector (A).

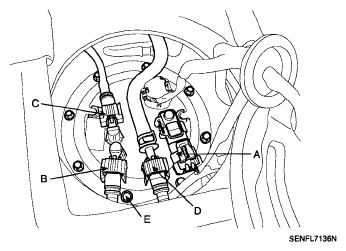

Fig 4: Identifying Fuel Tank Pressure Sensor Connector, Fuel Feed Tube Quick-Connector And Suction Tube Quick-Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect the fuel feed tube quick-connector (B), the suction tube quick-connector (C), and the vacuum tube quick-connector (D).
Remove the fuel pump after unfastening the fuel pump installation bolts (E).

Fig 5: Identifying Fuel Assist Pump
Courtesy of HYUNDAI MOTOR CO.
