IMS (Integrated Memory System) Power Seat Control Connector End View

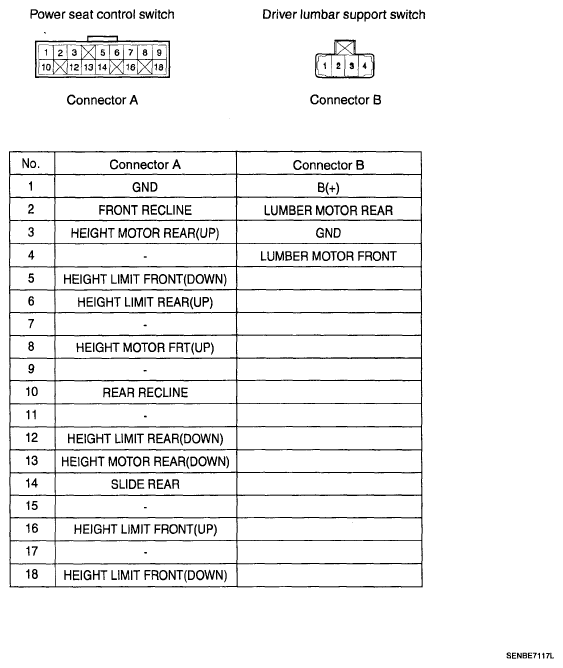

Fig 1: IMS (Integrated Memory System) Power Seat Control Connector End View

G05331888

Courtesy of HYUNDAI MOTOR AMERICA
