RF Receiver: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the buzzer (A) in the clip hole after disconnecting the connector on the side rail panel

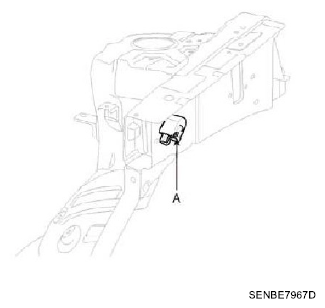

    Fig 1: Identifying Buzzer
    G06207892Courtesy of HYUNDAI MOTOR CO.
