Tailgate Switch

  1. Disconnect the negative (-) battery terminal.
  2. Open the tailgate and remove the tailgate trim switch (A) using the appropriate trim tool. And then remove the connector (B).

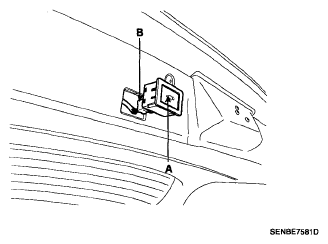

    Fig 1: Identifying Tailgate Trim Switch And Connector
    G05332004Courtesy of HYUNDAI MOTOR CO.
