Power Tailgate Open/Close

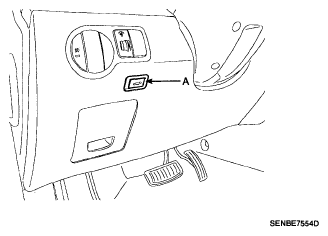

- The power tailgate will open and close automatically if the master switch (A) is pressed more than 0.5s on the lower crash pad.
Courtesy of HYUNDAI MOTOR CO.
- When the power tailgate starts operation from full closed or full open position, the warning lamp and the chime will operate 3 times.
- General rules for chime functions
- Chime & tail lamp shall operate prior to and during power opening or closing the Tailgate: 3 Times (0.5 sec on, 0.5 sec off), after 1 chime start opening or closing with two chimes.
- Chime shall operate when a power operation cannot be performed as requested except handle pull: 1 Time (Duration 0.5 second on)
- Chime shall operate when an obstacle has been detected: 3 Times (0.5 sec on, 0.5 sec off)
- Chime shall operate if PTG has not reached primary latch position after a power cinch cycle: 3 Times (0.5 sec on, 0.5 sec off)
