Monitor Scan Tool Data
- Connect scan tool to Data Link Connector (DLC).
- Ignition "ON" & engine "OFF" & PTG "ON"

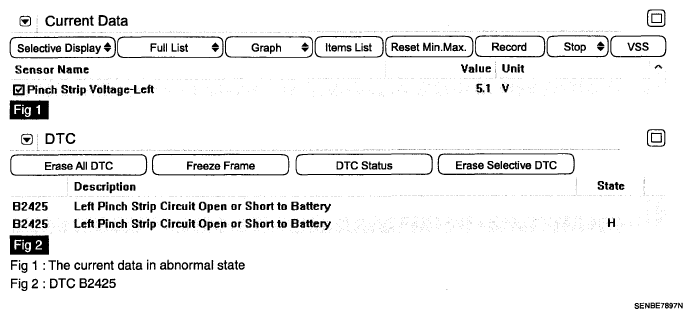

- Monitor the "Left Pinch Strip Voltage" Parameter on the Scan tool.
Specification: 3.66V or less
- Is the measured current data within specifications?
YES:
- Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO:
- Go to Inspection & Repair procedure.
