Component Inspection

Check fork volt/detent switch

Ignition "ON" & engine "OFF" & PTG "ON".

Monitor 'Detent Switch', 'Fork bolt Primary Switch', 'Fork bolt Secondary Switch' parameter on the scan tool while operating PTG.

Specification: Refer specification in Fig 3

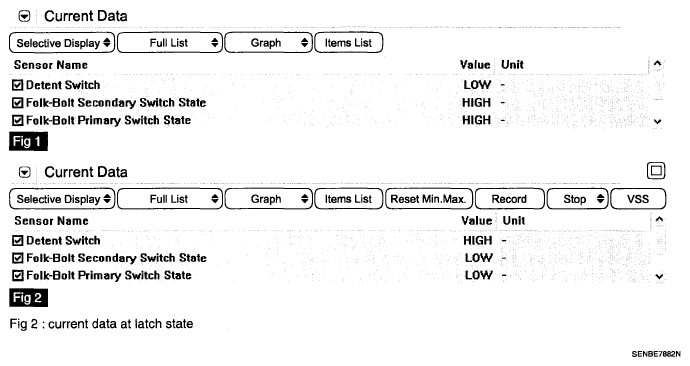

Fig 1: Monitoring Detent Switch, Fork bolt Primary Switch And Fork bolt Secondary Switch

G05332031

Courtesy of HYUNDAI MOTOR CO.

SWITCH SPECIFICATION CHART

Mode	Switch/motor	Primary	Before/P	Secondary	Before/S	Unlatch
Open	1st	HIGH	HIGH→LOW	LOW	LOW	LOW
	2nd	HIGH	HIGH	HIGH	HIGH	LOW
	Detent	LOW→HIGH	HIGH	HIGH	HIGH	HIGH
	Latch motor	HIGH→LOW	LOW (FW)	LOW (FW)	LOW (FW)	HIGH

SWITCH SPECIFICATION CHART

Mode	Switch/motor	Primary	Before/P	Secondary	Before/S	Unlatch
Close	1st	LOW	LOW	LOW	LOW→HIGH	HIGH
	2nd	LOW	HIGH	HIGH	HIGH	HIGH
	Detent	HIGH	HIGH	LOW	OFF	LOW
	Latch motor	HIGH	HIGH	LOW (FW)	LOW (FW)	LOW→HIGH

* Output of 1st, 2nd fork bolt/detent switch and operation of latch/cinch motor as a function of gate position.

Is the measured current data within specifications?
YES:
- Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO:
- Substitute with a known-good Latch assembly and check for proper operation.
  If the problem is corrected, replace latch assembly and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
