Power Tailgate System
>>
Component Location
Component Location

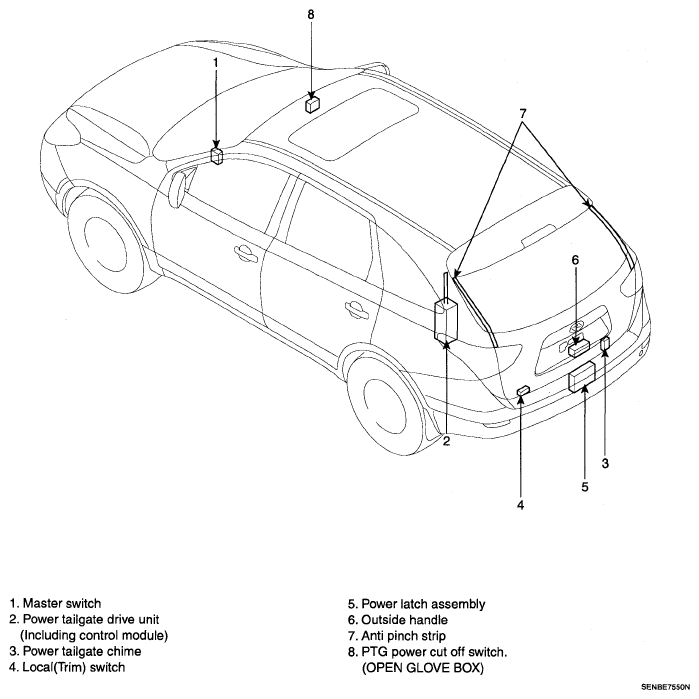

Fig 1: Identifying Power Tailgate System Component Location
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
