Chart 4

CD WILL NOT BE ACCEPTED

Fig 1: Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
NO SOUND

Fig 2: Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.

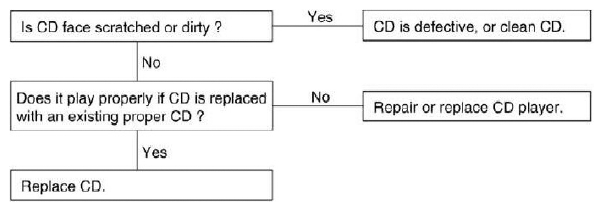

CD SOUND SKIPS
1. Sound sometimes skips when parking.

  Fig 3: Diagnostic Flow Chart
  Courtesy of HYUNDAI MOTOR CO.
2. Sound sometimes skips when driving.
  (Stop vehicle, and check it.)

  (Check by using a CD which is free of scratches, dirt or other damage.)

  Fig 4: Diagnostic Flow Chart
  Courtesy of HYUNDAI MOTOR CO.

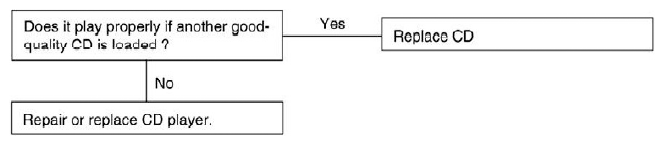

SOUND QUALITY IS POOR

Fig 5: Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.

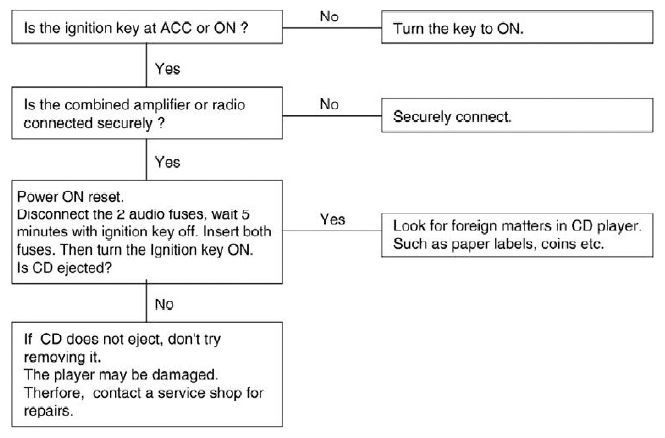

CD WILL NOT EJECT

Fig 6: Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
NO SOUND FROM ONE SPEAKER

Fig 7: Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
