Multimedia jack: Removal

Disconnect the negative (-) battery terminal.
Remove the shift lever knob (A) pulling up.
(Refer to "CONSOLE ")

Fig 1: Identifying Shift Lever Knob
Courtesy of HYUNDAI MOTOR CO.
Remove the console under cover (A).

Fig 2: Identifying Console Under Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connectors (A) from the console under cover.

Fig 3: Identifying Connectors
Courtesy of HYUNDAI MOTOR CO.

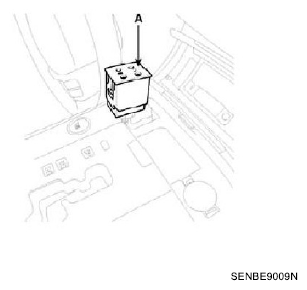

Remove the Multimedia Jack (A) from the console under cover.

Fig 4: Identifying Multimedia Jack

Courtesy of HYUNDAI MOTOR CO.
