Multimedia jack: Components

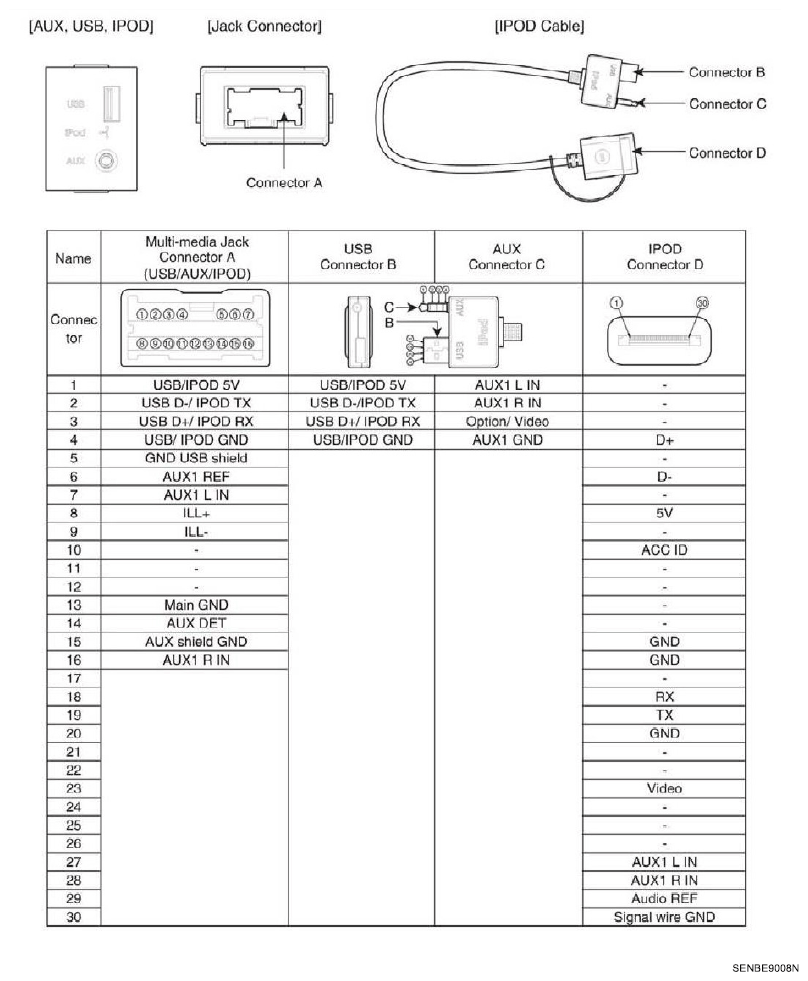

Fig 1: Identifying Multimedia Jack Components

G06207823

Courtesy of HYUNDAI MOTOR CO.
