Audio Unit: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the air vent panel (A).

    (Refer to CRASH PAD ).

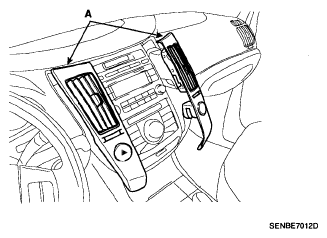

    Fig 1: Identifying Air Vent Panel
    G05331673Courtesy of HYUNDAI MOTOR CO.
  3. Remove the connectors (Hazard lamp connector, incar temperature sensor connector).
  4. Remove the center facia panel (A) after loosening the screws (6EA).

    (Refer to CRASH PAD ).

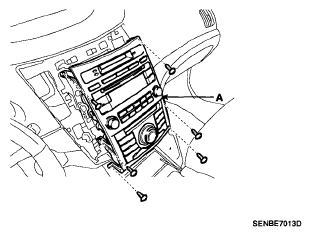

    Fig 2: Identifying Center Facia Panel
    G05331674Courtesy of HYUNDAI MOTOR CO.
  5. Remove the mounting screws (6EA) then remove the audio unit.

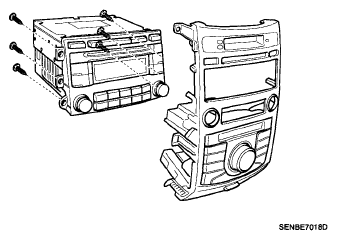

Fig 3: Identifying Mounting Screws And Audio Unit
G05331675Courtesy of HYUNDAI MOTOR CO.
