Audio Unit: Components

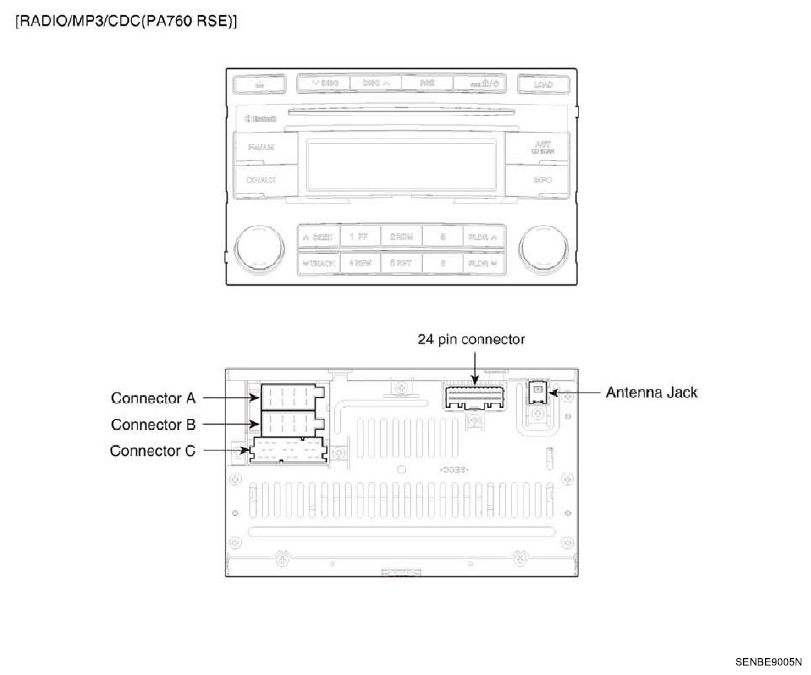

Fig 1: Identifying Audio Unit Components (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

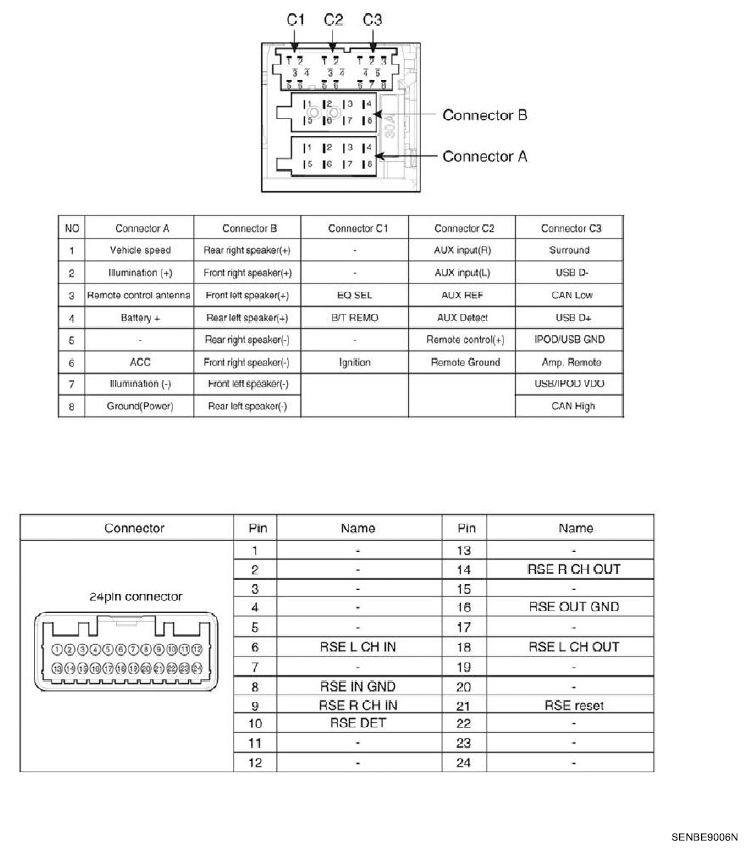

Fig 2: Identifying Audio Unit Components (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

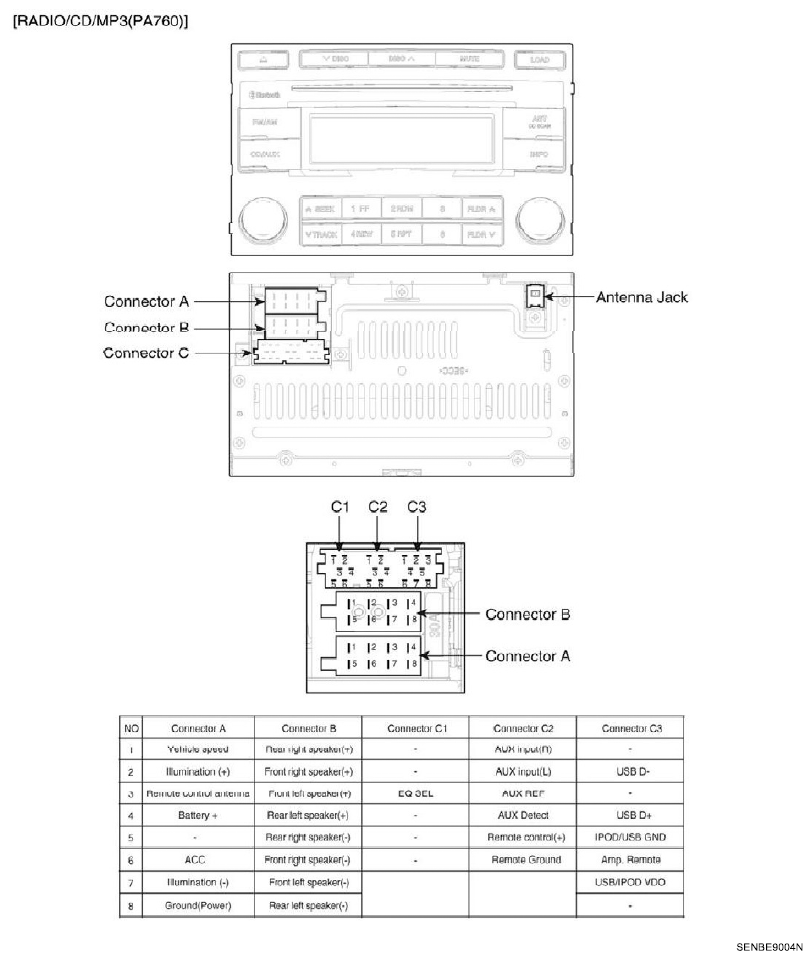

Fig 3: Identifying Audio Unit Components (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

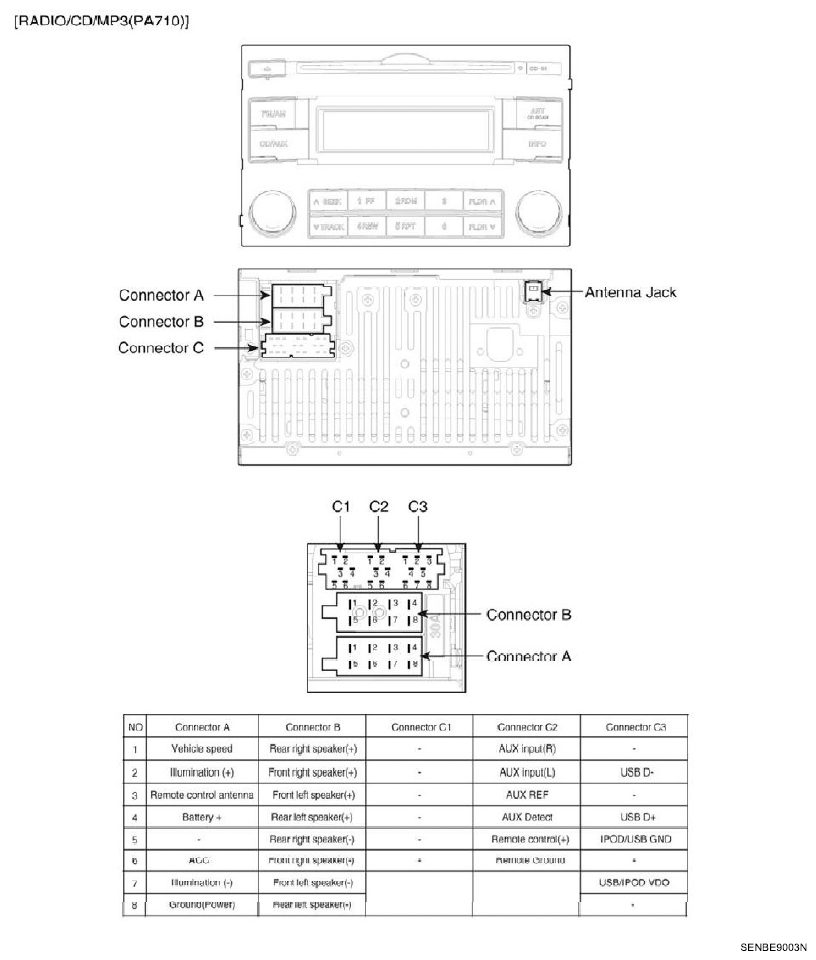

Fig 4: Identifying Audio Unit Components (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
