Audio Remote control: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver airbag module (A).

    (Refer to RESTRAINTS ).

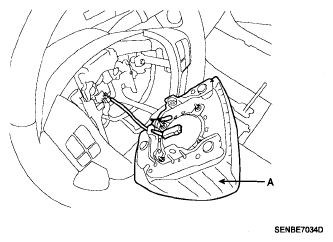

    Fig 1: Identifying Driver Airbag Module
    G05331692Courtesy of HYUNDAI MOTOR CO.
  3. Remove the audio remote control switch (B) after remove the steering wheel remote control switch connector (A) and 6 screws.

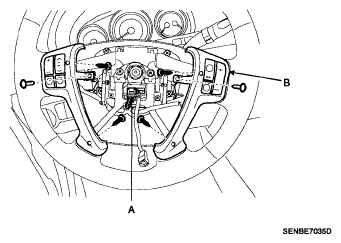

Fig 2: Identifying Audio Remote Control Switch And Steering Wheel Remote Control Switch Connector
G05331693Courtesy of HYUNDAI MOTOR CO.
