Audio Remote control: Inspection

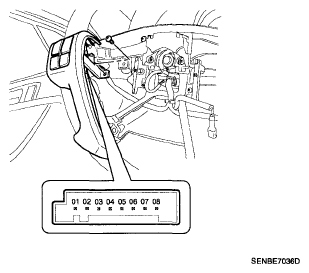

- Check for resistance between No. 6 and No. 7 terminals in each switch position.
Courtesy of HYUNDAI MOTOR CO. RESISTANCE CHART
| Switch |
Connector terminal |
Resistance (±5 %) |
| VOLUME DOWN |
6-7 |
6.81 kΩ |
| VOLUME UP |
6-7 |
4.61 kΩ |
| MODE |
6-7 |
2.11 kΩ |
| SEEK DOWN |
6-7 |
1.11 kΩ |
| SEEK UP |
6-7 |
430 Ω |
| MUTE |
6-7 |
3..11 kΩ |
