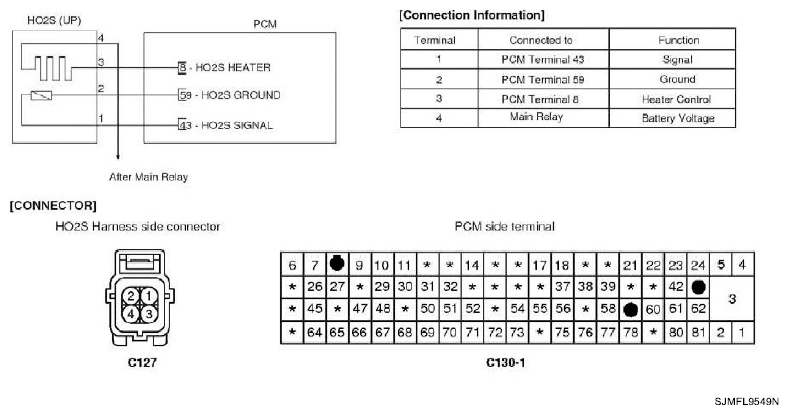

Home >> Hyundai >> 2009 >> Tucson Limited, 2.0 B >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures (2.0L) >> Troubleshooting for DTC >> P0130 O2 Sensor Circuit (Bank 1/Sensor 1) >> Schematic Diagram
