Schematic Diagram

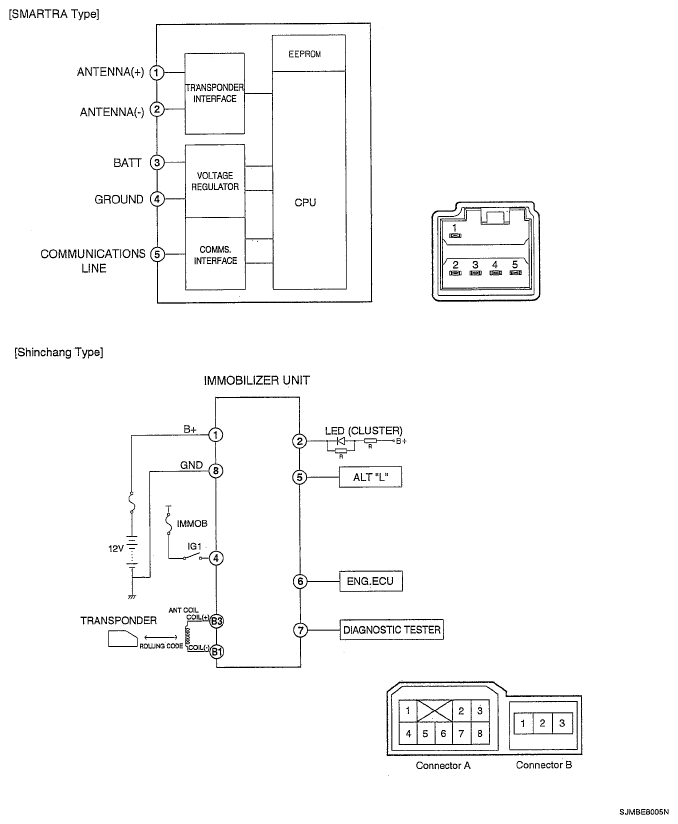

Fig 1: Schematic Diagram
G05537508Courtesy of HYUNDAI MOTOR CO.

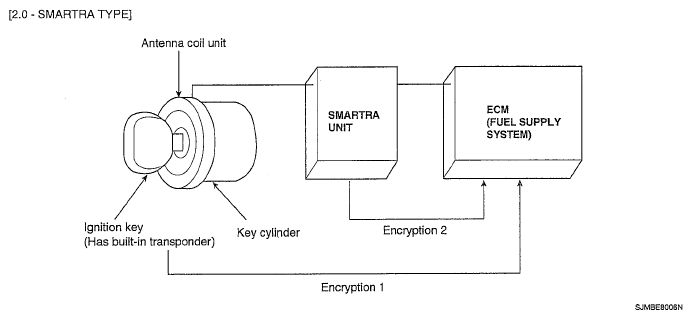

Fig 2: Antenna Coil Unit System Diagram
G05537509Courtesy of HYUNDAI MOTOR CO.

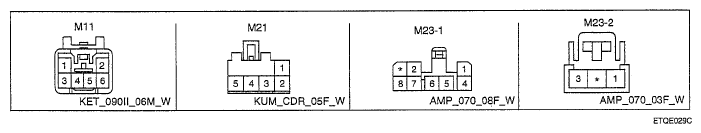

Fig 3: Identifying Connector Terminal
G05537510Courtesy of HYUNDAI MOTOR CO.
