Front Wheel Speed Sensor: Components

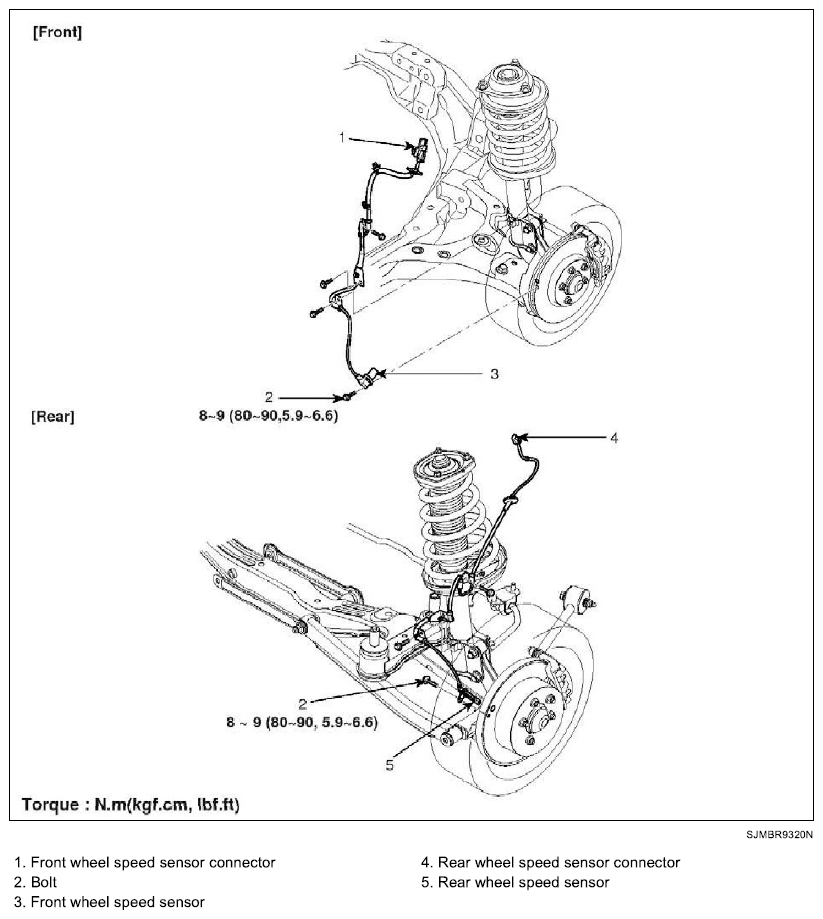

Fig 1: Front Wheel Speed Sensor Replacement Components With Torque Specifications

G06207413

Courtesy of HYUNDAI MOTOR CO.
