Signal Circuit Inspection

Measure resistance between each terminal of the sensor harness connector and TCM (PCM)harness connector as below.

Specification :

PIN SPECIFICATIONS

Pin No of "TRANSAXLE RANGE SWITCH"	C208 No1	C208 No3	C208 No4	C208 No7
Pin No of "TCM (PCM)" harness	C224-3NO17	C224-3NO5	C224-3NO6	C224-3NO16
Specification	0Ω	0Ω	0Ω	0Ω

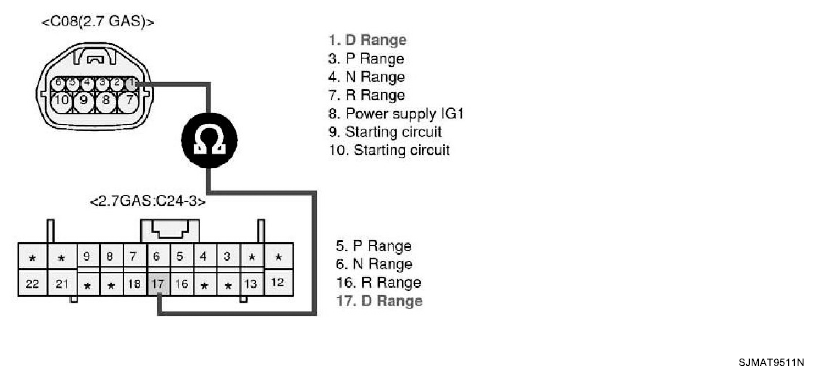

Fig 1: Measuring Resistance Between Each Terminal Of Sensor Harness Connector And TCM (PCM)Harness Connector

Courtesy of HYUNDAI MOTOR CO.

Is resistance within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Check for Open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
