Key Lock Assembly

  1. If it is necessary to remove the key lock assembly (A), use a punch to make a groove on the head of the special bolt (B), and then use a screwdriver to remove the key lock assembly mounting bracket (C).

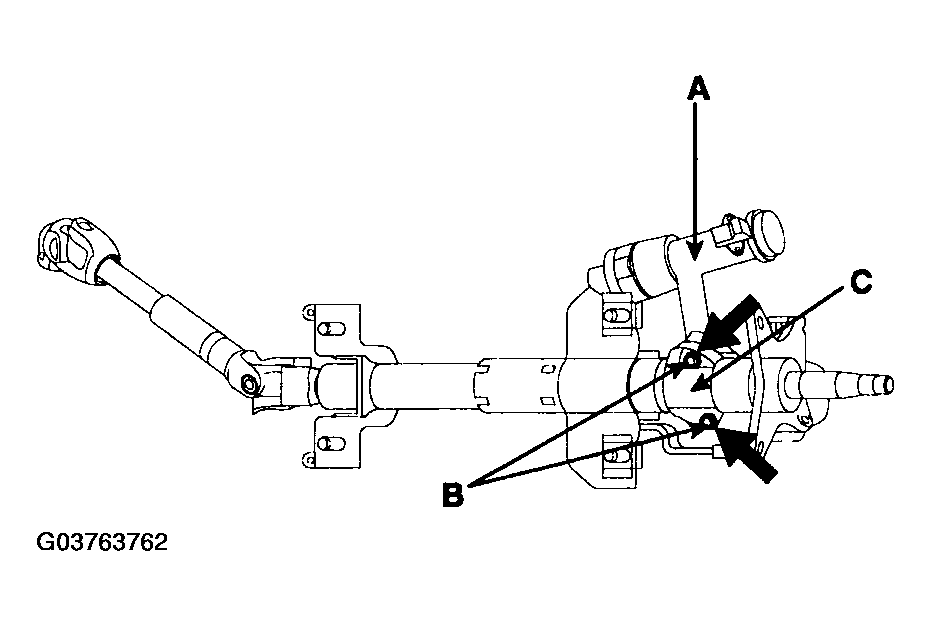

    Fig 1: Identifying Key Lock Assembly Bolts
    G03763762Courtesy of HYUNDAI MOTOR CO.
  2. Disassemble the key lock assembly (A) from the steering column and shaft assembly (B).

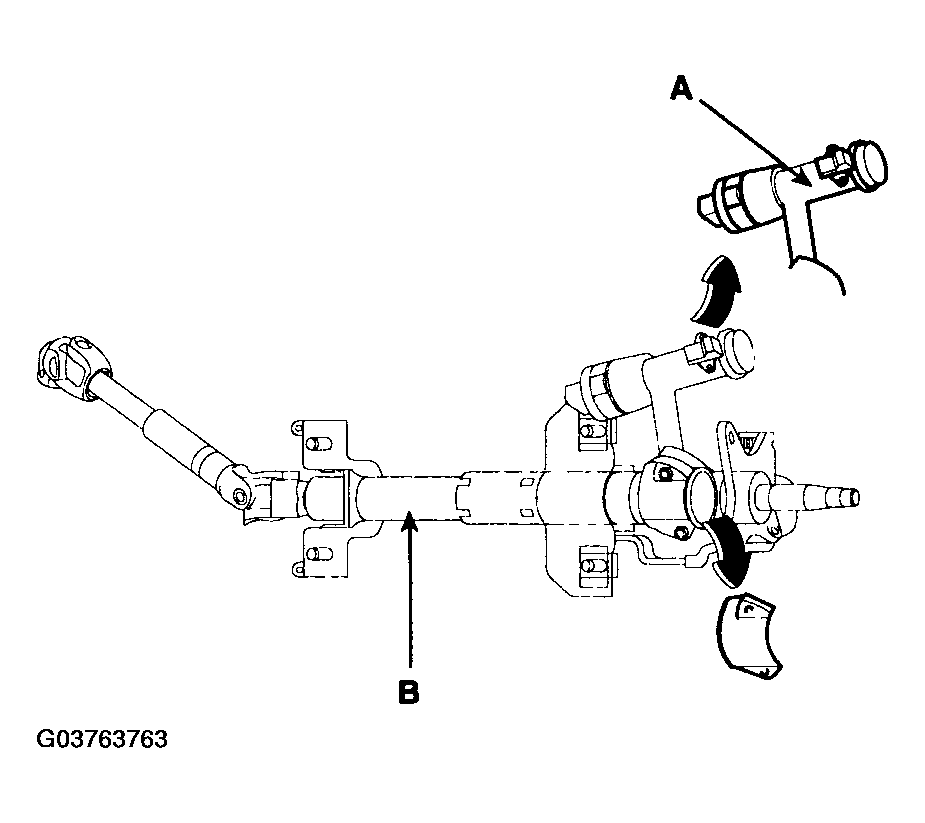

    Fig 2: Disassembling Key Lock Assembly From Steering Column And Shaft Assembly
    G03763763Courtesy of HYUNDAI MOTOR CO.
  3. Reassembly is the reverse of disassembly.
