Special Tools
SPECIAL TOOLS
| Tool (Number and Name) | Illustration | Use |
|---|---|---|

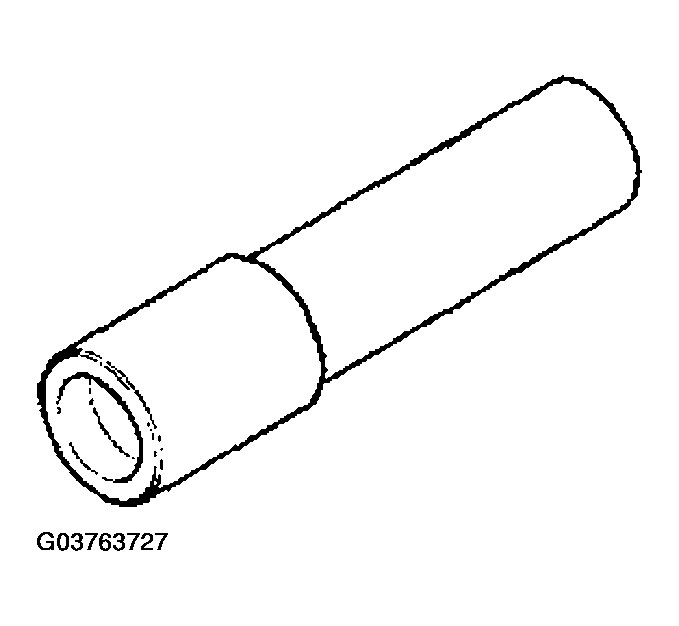

| 09222-32100 Valve stem oil seal installer | Installing the pinion gear bearing | |

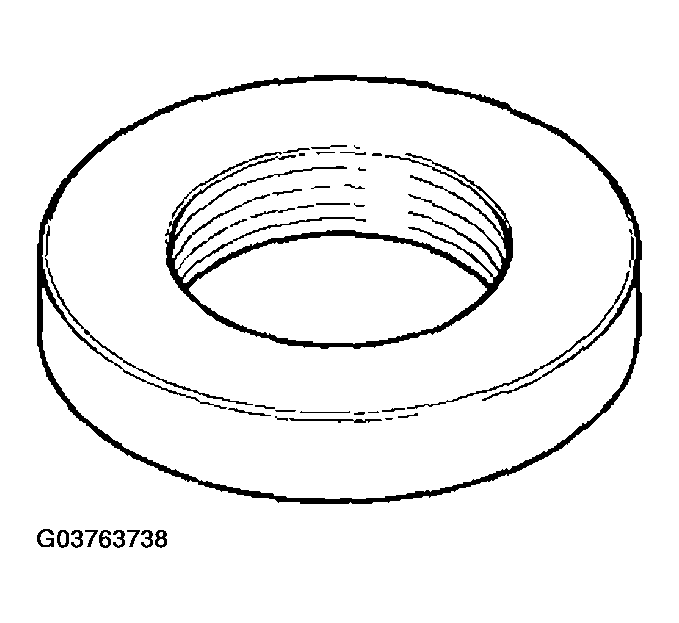

| 09432-21600 Bearing installer | Installing the pinion gear bearing | |
| 09434-14200 Counter shaft bearing installer | Installing the gear box oil seal. | |

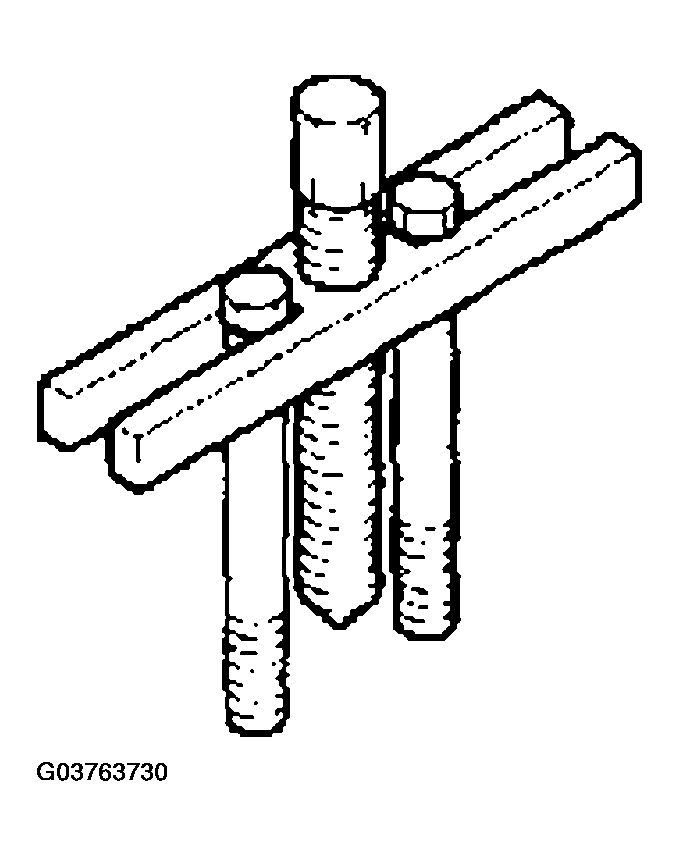

| 09561-11002 Steering wheel puller | Removing the steering wheel. | |

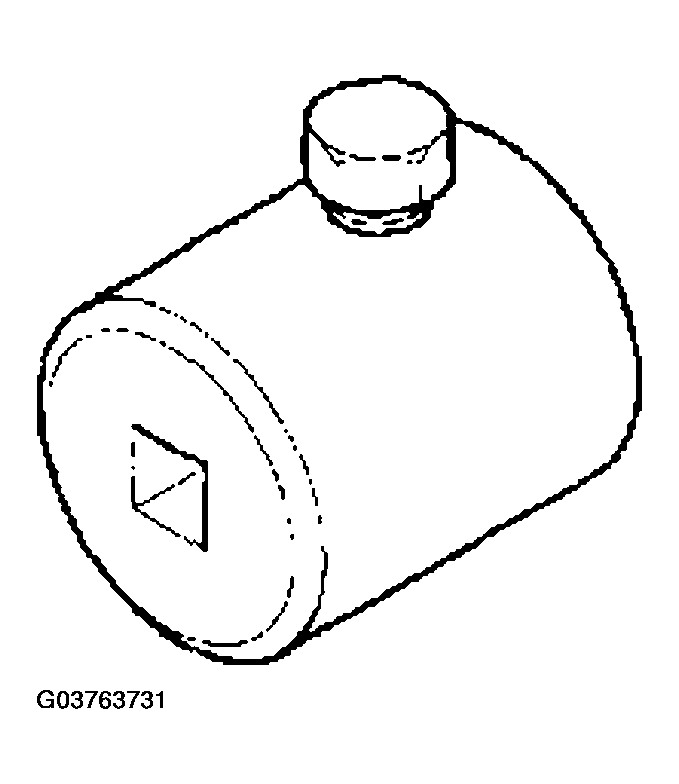

| 09565-11100 Preload socket | Measuring the mainshaft preload. | |

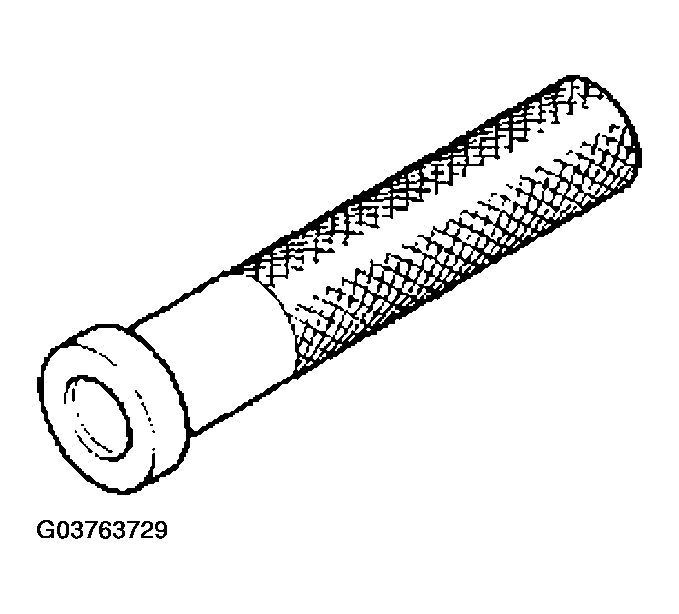

| 09555-21000 Bar | Removing & installing the oil seal. | |

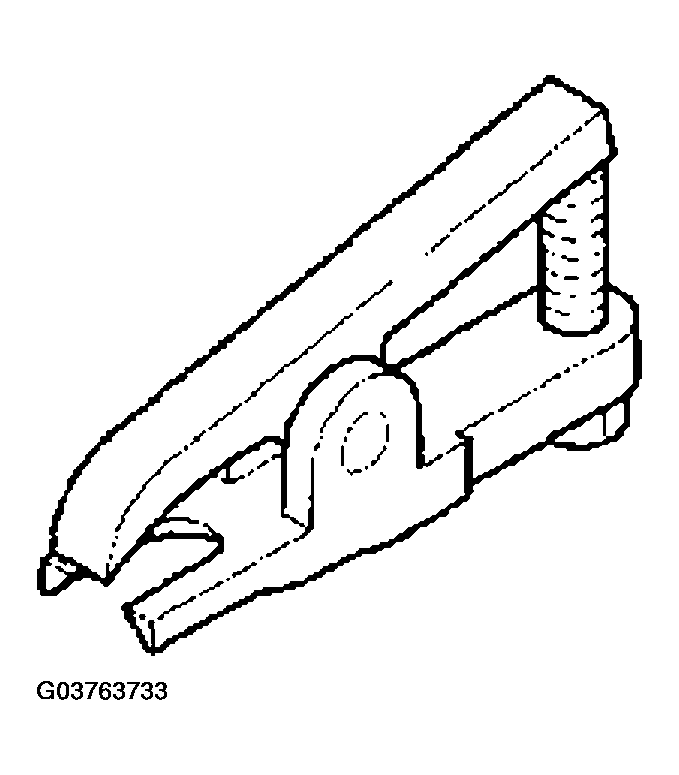

| 09568-34000 Ball joint puller | Separating the tie rod end ball joint. | |

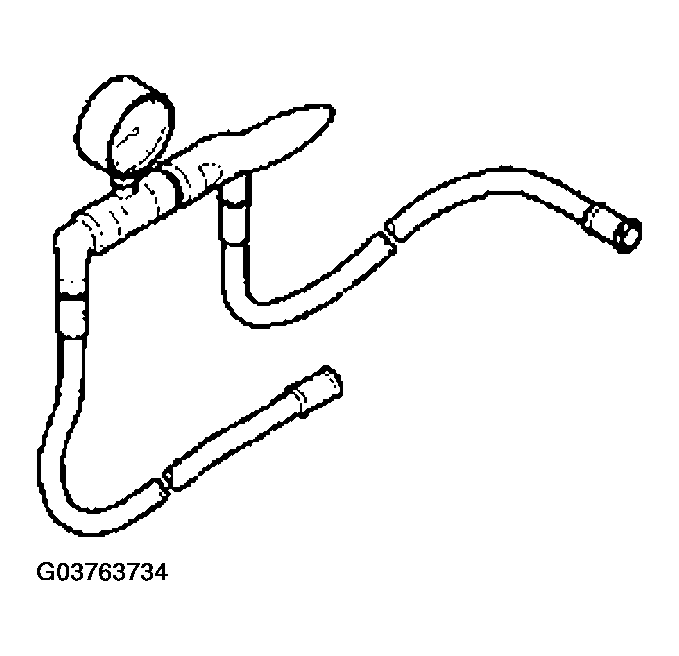

| 09572-21000 Oil pressure gauge | Measuring the power steering oil pressure (use with 09572-21200, 09572-22100) | |
| 09572-21200 Oil pressure gauge adapter | Measuring the power steering oil pressure (use with 09572-21000, 09572-22100) | |
| 09572-22100 Oil pressure gauge adapter | Measuring the power steering oil pressure (use with 09572-21000, 09572-21200) | |
| 09573-21000 Oil seal installer gauge | Installing the back-up washer and oil seal. (use with 09573-21100, 09573-21200, 09517-11000, 09555-21000) | |
| 09573-21100 Oil seal installer | Installing the back-up washer and oil seal. (use with 09573-21000, 09573-21200, 09555-21000) | |
| 09573-21200 Oil seal guide |
|
