Checking Steering Angle

  1. Place the front wheel on a turning radius gauge and measure the steering angle.

    Standard value

    Wheel angle

    Inner wheel: 36°77' +/- 1°30'

    Outer wheel: 31°74'

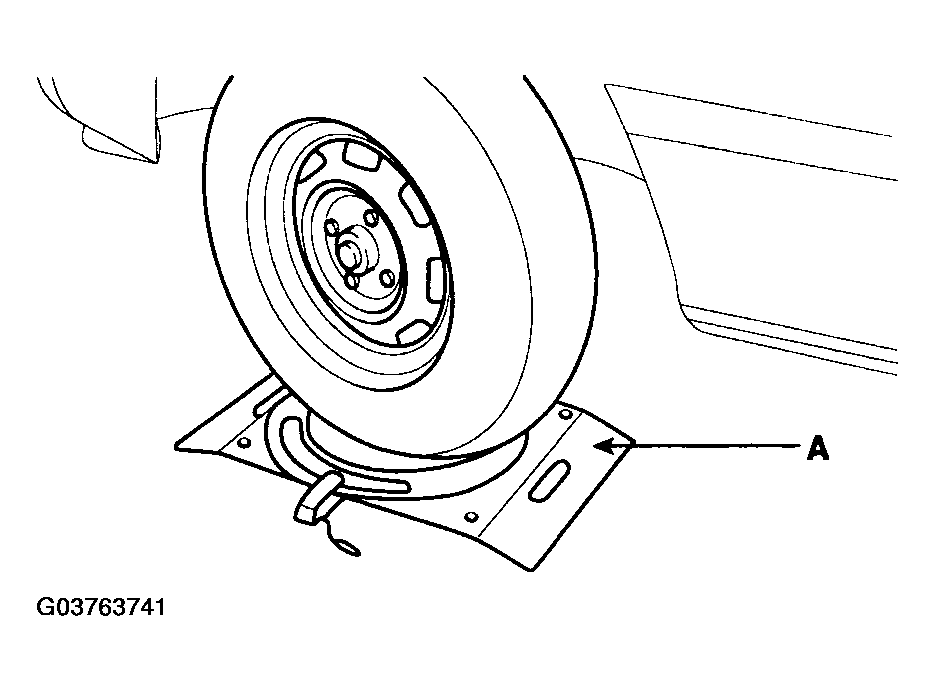

    Fig 1: Measuring Steering Angle
    G03763741Courtesy of HYUNDAI MOTOR CO.
  2. If the measured value is not within the standard value, adjust the linkage.
