Power Steering Oil Pump: Components

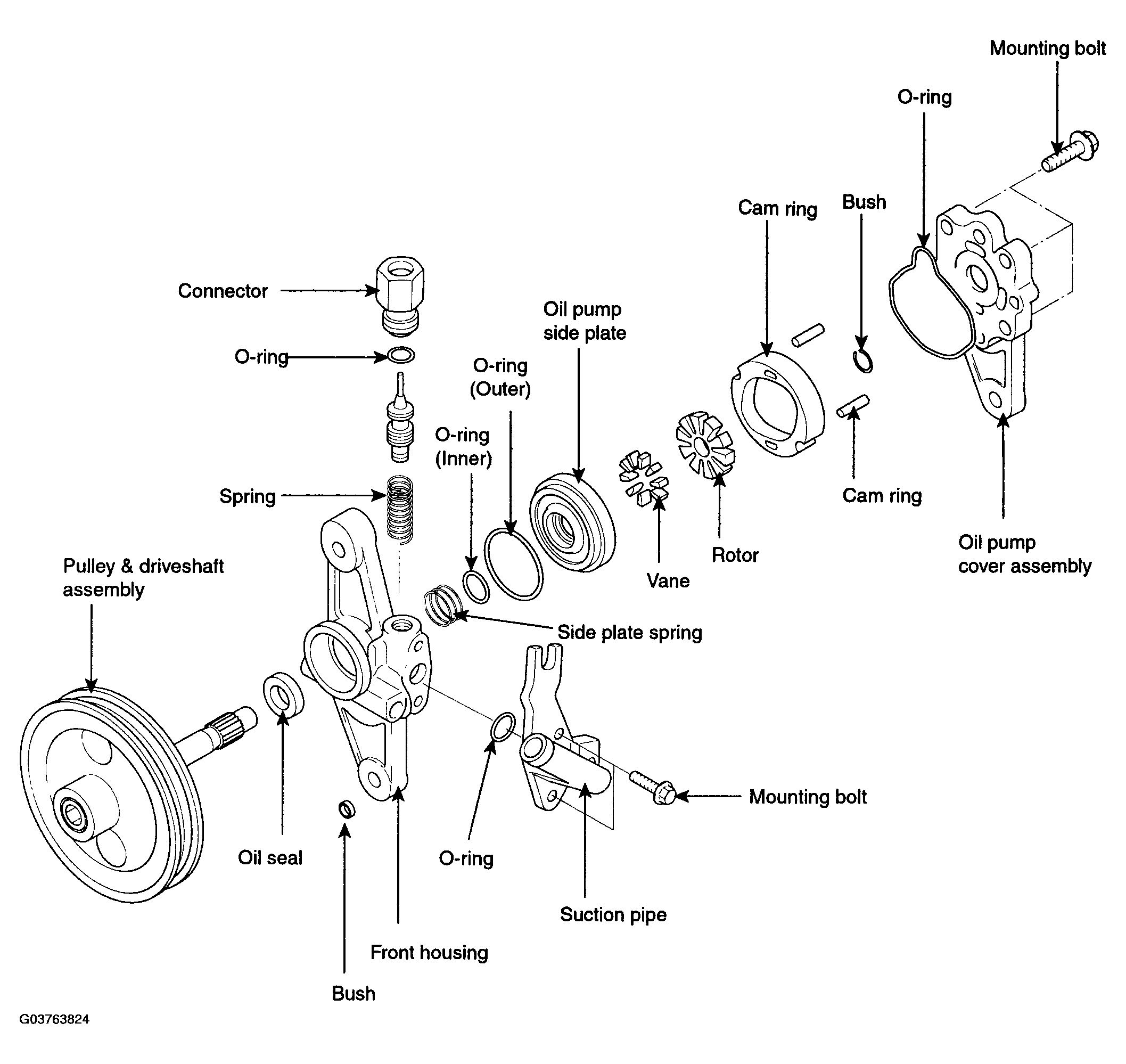

Fig 1: Exploded View Of Power Steering Oil Pump/Pulley Assembly
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
